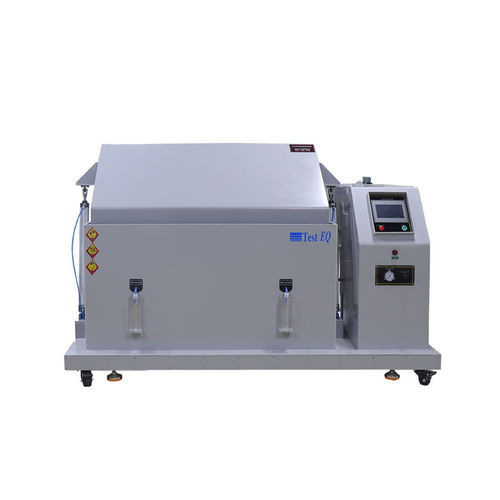

Salt spray test chamber SSTC series

climatichumiditytemperature

Technical Specifications Capacity : 110–1,500 L  Temperature Range: -40°C to +85°C (±1°C stability). Salt Spray (NSS/AASS/CASS): 5% NaCl solution, pH 4.0–7.2  Cyclic Conditions:  45~96%RH Cycle Customization: 1–99 hrs Spray System: 1.0–2.0 mL/hr per 80 cm² Features 1.Multi-Environment Simulation: •Replicates accelerated corrosion in marine, industrial, or road salt conditions with cyclic temperature/humidity stress. 2.Advanced Control: •7-inch HMI touchscreen with 100+ pre-set programs, real-time graphs, and remote monitoring via Wi-Fi/Ethernet. 3.Durability: •FRP (fiber-reinforced plastic) housing, titanium alloy heaters, and quartz heating tubes for resistance to acidic/alkali corrosion. 4.Eco-Friendly Design: •Closed-loop filtration system (recycles 70% of spray solution) and R290/R513A refrigerants (low GWP). 5.Safety & Maintenance: •Leak detection, over-temperature cutoffs, and self-cleaning nozzles to minimize downtime. 1.Automotive: •Accelerated corrosion testing for coated chassis, brake lines, and EV battery housings (e.g., SAE J2334). 2.Aerospace: •Validation of turbine blades, fasteners, and avionics under combined salt fog and thermal cycling (MIL-STD-3312). 3.Electronics: •IP-rated enclosure testing (IEC 60529) and PCB conformal coating evaluation. 4.Marine Engineering: •Simulate offshore conditions for anti-corrosive paints, stainless steel welds, and sacrificial anodes. 5.Renewable Energy: •Durability studies for solar panel frames and wind turbine components in coastal environments.
