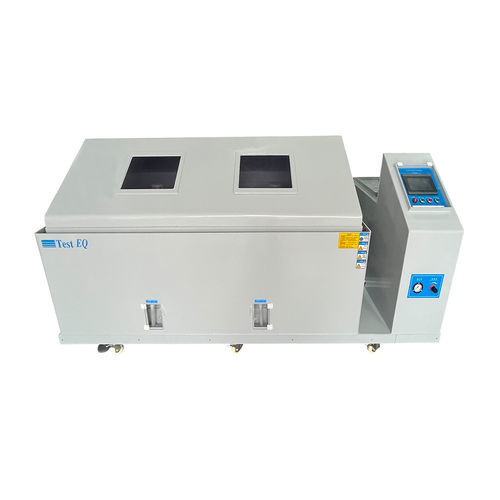

Climate chamber W-STH series

humiditytemperaturesalt spray

Product Details - Capacity: 3–12m³ - Temperature Range: -40°C to +85°C (±1°C stability). - Salt Spray (NSS/AASS/CASS): 5% NaCl solution, pH 4.0–7.2 - Cyclic Conditions: 45~96%RH - Cycle Customization: 1–99 hrs - Spray System: 1.0–2.0 mL/hr per 80 cm² Specifications - Serial number - Capacity (m3): 3.78, 5, 8, 11.5, 12 - Model: Temp&Humidity Salt Spray Chamber - Internal Dimension WxHxD (mm): 1500x1800x1400, 1700x1800x1600, 2000x2000x2000, 2600x2000x2200, 2000x2000x3000 - External Dimension WxHxD (mm): 1600x2850x2380, 1800x2850x2580, 2200x3050x2980, 2800x3050x3180, 2200x3050x4980 - Test Standard: ACSS, SOAK, DRYAIR, HUMI, ROOMAIR - Temperature Range: A: RT (+15 ℃) ~ +85℃, B: -10℃ ~ +85℃, C:-20℃ ~ +85℃, D:-40℃ ~ +85℃, E:-55℃ ~ +85℃ - Humidity Range: 20% ~98% R.H, 15%~95% R.H add dehumidifier or Dryer - Temperature Rising/Falling Speed Rate: Temperature rising approx:0.1~ 3.0℃/min( 3-10℃/min whole Course Average-optional), Temperature falling approx:0.3-1.0℃/min ( 3-10℃/min whole Course Average-optional) - Analytic Accuracy/Distribution Uniformity of Temp & Humidity: 0.1℃ ; 0.1% R.H, ±2.0℃ ; ±5% R.H - Control Accuracy of Temperature: ±0.5℃, ±2.5℃ 2%R.H - Pressure Bucket Temperature: Saline test method (NSS ACSS) 47±1℃; Corrosion Test (CASS)63±1℃ - Compressed Air Pressure (KGf): 1.0-6.0 - Spray Volume: 1.0-2.0ml/80cm²/h (working at least 16 hours, and take the average value) - Compressor: French "Tecumseh" Brand, Germany "Bitzer" Brand or similar brand - Optional Accessories: Sample shelf, Cart etc - Spray Method: Continuous spray or Programmable spray - Power: AC220V,1phase3 lines 50/60Hz, AC380V,3 phase 5 lines 50/60Hz - Note: Other studio sizes or special features: Customizable as per requirements; The main parameters and configurations can be obtained separately from our sales engineers Product Features - Multi-Environment Simulation: Replicates accelerated corrosion in marine, industrial, or road salt conditions with cyclic temperature/humidity stress. - Advanced Control: 7-inch HMI touchscreen with 100+ pre-set programs, real-time graphs, and remote monitoring via Wi-Fi/Ethernet. - Durability: FRP (fiber-reinforced plastic) housing, titanium alloy heaters, and quartz heating tubes for resistance to acidic/alkali corrosion. - Eco-Friendly Design: Closed-loop filtration system (recycles 70% of spray solution) and R290/R513A refrigerants (low GWP). - Safety & Maintenance: Leak detection, over-temperature cutoffs, and self-cleaning nozzles to minimize downtime. Standards Supported - Global: ASTM G85 (Modified Salt Spray Tests), ISO 14993 (Corrosion of Metals). - Automotive: Volvo VCS 1027,1496, Ford CETP 00.00-L-467. - Military: MIL-STD-810H (Method 509.6), DEF STAN 07-35. - Regional: GB/T 10125-2021 (China), DIN 50021 (Germany). Additional Options - Automotive: Accelerated corrosion testing for coated chassis, brake lines, and EV battery housings (e.g., SAE J2334). - Aerospace: Validation of turbine blades, fasteners, and avionics under combined salt fog and thermal cycling (MIL-STD-3312). - Electronics: IP-rated enclosure testing (IEC 60529) and PCB conformal coating evaluation. - Marine Engineering: Simulate offshore conditions for anti-corrosive paints, stainless steel welds, and sacrificial anodes. - Renewable Energy: Durability studies for solar panel frames and wind turbine components in coastal environments. Technical Characteristics / Specifications - Capacity: 3–12m³ - Temperature Range: -40°C to +85°C (±1°C stability) - Salt Spray (NSS/AASS/CASS): 5% NaCl solution, pH 4.0–7.2 - Cyclic Conditions: 45~96%RH - Cycle Customization: 1–99 hrs - Spray System: 1.0–2.0 mL/hr per 80 cm² - Humidity Range: 20% ~98% R.H, 15%~95% R.H (add dehumidifier or Dryer) - Temperature Rising Rate: 0.1~3.0℃/min (3-10℃/min optional) - Temperature Falling Rate: 0.3-1.0℃/min (3-10℃/min optional) - Analytic Accuracy: 0.1℃ ; 0.1% R.H - Distribution Uniformity: ±2.0℃ ; ±5% R.H - Control Accuracy: ±0.5℃ ; ±2.5℃ 2%R.H - Pressure Bucket Temperature: NSS/ACSS 47±1℃; CASS 63±1℃ - Compressed Air Pressure: 1.0-6.0 KGf - Spray Volume: 1.0-2.0ml/80cm²/h - Compressor: Tecumseh (France), Bitzer (Germany) or similar - Optional Accessories: Sample shelf, Cart - Spray Method: Continuous or Programmable - Power: AC220V/1phase/3 lines/50/60Hz; AC380V/3 phase/5 lines/50/60Hz - Customizable sizes and features available
