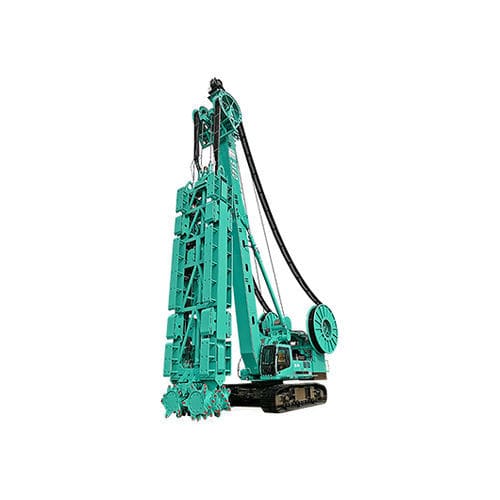

Hydromill SX40-A

Add to favorites

Compare this product

Description

Key specifications

Type: Trench cutter & grab unit
Model: SX40-A
Output torque of trench cutter: 2×120 kN·m
Wall width: 0.8–1.5 m
Wall depth: 80 m
Main pump flow: 2×380+130+330 L/min
Power: 110+45 kW
Total weight (w/o cutter wheel): 98 t

Features

Suitable for various soil conditions
Airlift system for slag removal
Accurate slotting verticality for precise wall alignment
Cut-and-joint operation for continuous excavation
Low noise and vibration with reduced emissions
Separation of slag and bentonite recycling
Operator-friendly control system
Combined cutting and grabbing multifunction

Technical table

Output torque of trench cutter: 120×2 kN·m
Pull force of winch: 2×350 kN
Main pump flow: 2×380+130+330 L/min
Total weight (w/o cutter wheel): 98 t
Power rotation speed: 300@1900 rpm
Power: 110+45 kW
Track shoe outer distance: 3450–4600 mm
Towing force: 630 kN
Wall width: 0.8–1.5 m
Wall depth: 80 m
Rotation speed max of trench cutter: 0–25 rpm
System pressure: 33 MPa
Weight of cutter wheel: 40 (B=1500) t
Diesel: Cummins QSM11
Electric motor: Y315S+Y225M
Model of undercarriage: SH36-R455LC-7 JT90
Track shoes width: 800 mm
Crawler speed: 1.5 km/h
