Hydromills

... Key specifications

• Type: Trench cutter & grab unit
• Model: SX40-A
• Output torque of trench cutter: 2×120 kN·m
• Wall width: 0.8–1.5 m
• Wall depth: 80 m
• Main pump flow: 2×380+130+330 L/min
• Power:

... Key Specifications
Output torque: 2×150 kN·m
Wall width: 0.8–2 m
Wall depth: 85–125 m

Industry

• Municipal
• General

• Suitable for a wide range of soil conditions
• Airlift

... Hydromill designed to meet the demanding requirements of urban jobsites The SC-110U is specifically designed for hydromill applications. In combination with the SH-35, it guarantees high performance and flexibility. ...

... The SH-35 is the Soilmec brand new excavation module. With an operating weight of between 30 and 38 tons, the SH-35 is assembled on a special heavy frame that allows a wide range of panel thicknesses, from 650 mm to 1500 mm. To ensure a precise verticality ...

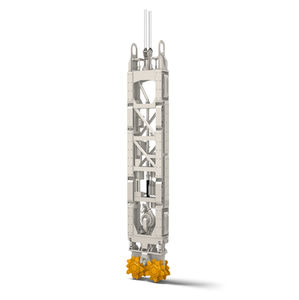

... The hydromill module is constituted by a heavy steel frame on which two milling drums and a centrifugal mud pump are mounted. In order to correct the module verticality deviation, 12 independent mobile flaps are positioned on the module ...

... Overall height - 12.6 m Trench length - 2,800 mm Stroke (upper steering flaps) - 100 mm Stroke (bottom steering flaps) - 100 mm Torque - 91 kNm Speed of rotation - 0-25 U/min ...

... Overall height 12,6 m Trench length 2.800 [3.200] mm Stroke [upper steering flaps] 40/100 mm Stroke [lower steering flaps] 100 mm Torque max. 100 kNm Speed of rotation 0-25 rpm ...

... Overall height - 12,600 m /41-3 ft Trench length - 2,800 /3,200 mm / 9.2 ft / 10.5 ft. Stroke (upper steering flaps) - 120 mm /4,7" Stroke (bottom steering flaps) - 120 mm /4,7" Torque - 112 kNm /82,607 lbf-ft Speed of rotation - 0-25 rpm ...

... Overall height 12,7 m Trench length 2.800 [3.200] mm Stroke [upper steering flaps] 40/100 mm Stroke [lower steering flaps] 100 mm Torque max. 120 kNm Speed of rotation 0-25 rpm ...

... Overall height - 9.28 m - 12.6 m Trench length - 2,800 mm - 2,800 mm Steering flaps - 12 pcs. - 12 pcs. Stroke steering flaps (top and bottom) - 100 mm - 100 mm Torque - 91 kNm - 91 kNm Speed of rotation - 0-25 rpm - 0-25 rpm ...

... Base machine - MT 130 Hydraulic power pack: - HD 1400 HDS (Hose drum system): - HDS 60 / HDS 80 Cutting depth: - 60 m / 80 m Trench cutter: - MBC 30 Additonal power pack (optional): - HD 155 ...

... Base machine: - MT 160 Hydraulic power pack: - HD 1400 HDS (Hose drum system) - HDS 120 Cutting depth: - max. 120 m Trench cutter: - BC 35 / BC 40 Overall height: - 18 m ...

... The Casagrande Hydromill FD60 is the model that suits the widest range of requests for special foundations. A version is available with special motors to increase the wheels torque. The hydromills are designed by Casagrande ...

... The Casagrande Hydromill FD100 is designed with heavy duty wheel assembly and special hydraulic motors to deal with very thick diaphragms and under very demanding ground conditions. The equipment consists of a heavy steel frame with ...

... Load limit control for engine protection and user friendly operation High precision leveling system by 2-stage differential lock which automatic adjusts the accuracy Cruise control Fully tracked steering in several variants Very efficient smart cooling ...

... One machine for cold milling and cold recycling As a high-performance in-situ cold recycler, the F8 CR recycles asphalt roads in a single pass. Working width of 2.200 mm Milling depth up to 330 mm Recycling depth up to 250 mm Cutting diameter of ...
