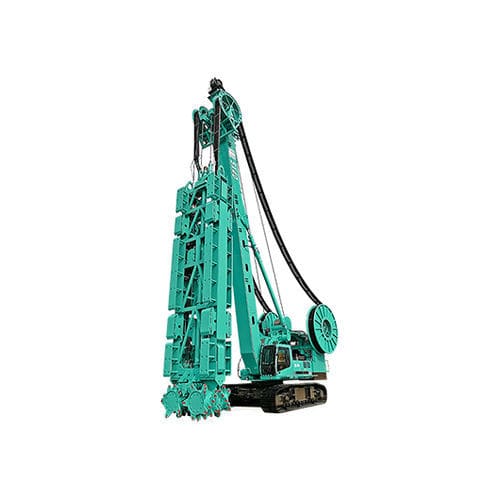

Hydromill SX150

Key Specifications
Output torque: 2×150 kN·m
Wall width: 0.8–2 m
Wall depth: 85–125 m

Industry

• Municipal
• General

Description

• Suitable for a wide range of soil conditions
• Airlift system for efficient sludge removal
• Accurate slotting verticality for precise wall alignment
• Integrated cut and joint process for continuous operations
• Low noise and low vibration operation with reduced emissions
• Separation of excavated material and bentonite recycling
• Ergonomic control system for operator efficiency
• Multi-function combination: cutting and grabbing capabilities

Product Specifications
Max. depth: 125 m (standard 85 m)
Length: 2,800 mm
Max. speed: 25 r/min
Correction plate: 12 units
Rotation angle: ±90°
Pump displacement: 450 m3/h
Wire rope diameter: 40 mm
Wire rope diameter: 20 mm
Min. feed speed: 0.5 cm/min
Power: 565/1,900 kW/rpm
Width: 800–2,000 mm
Torque: 2×150 kN·m
Height: 12.7 m
Correction stroke: 130 mm
Tube diameter: 152 mm
Max. pulling force: 80 t
Max. pulling force: 11 t
Feed stroke: 700 mm
Engine model: VOLVO TAD1643VE-B
Emission standard: CN III

Technical specifications

• Max. depth: 125 m (standard 85 m)
• Length: 2,800 mm
• Max. speed: 25 r/min
• Correction plate: 12 units
• Rotation angle: ±90°
• Pump displacement: 450 m3/h
• Wire rope diameter: 40 mm
• Wire rope diameter: 20 mm
• Min. feed speed: 0.5 cm/min
• Power: 565/1,900 kW/rpm
• Width: 800–2,000 mm
• Torque: 2×150 kN·m
• Height: 12.7 m
• Correction stroke: 130 mm
• Tube diameter: 152 mm
• Max. pulling force: 80 t
• Max. pulling force: 11 t
• Feed stroke: 700 mm
• Engine model: VOLVO TAD1643VE-B
• Emission standard: CN III
