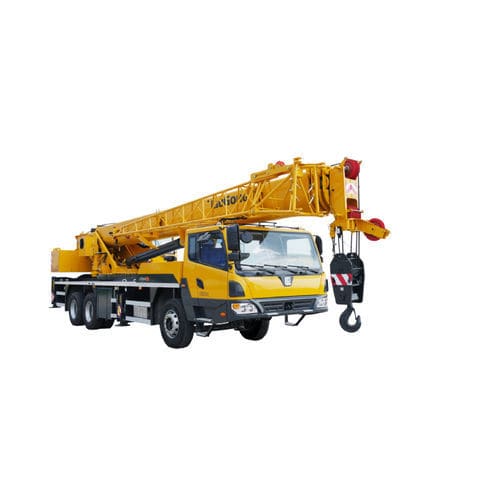

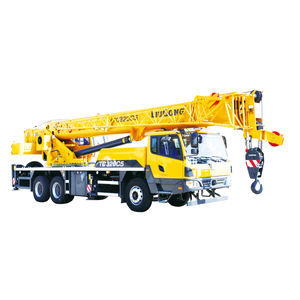

Truck-mounted crane LTC250V5

telescopicfor constructiondiesel engine

Overview

• Heavy lifting performance: With a maximum payload of 25 t the LTC250V5 is a high-capacity truck-mounted crane. Its U-shaped high-strength boom, telescopic hydraulic system and stabilised support geometry provide the reach and lifting performance required for heavy lifting tasks, with a maximum boom length of 49 m and a maximum jib length of 8 m.
• Fast and easy mobility: Road-capable design with a maximum travel speed of 80 km/h for efficient transfers between sites.
• Operator comfort and safety: Spacious cab with ergonomic controls, wide visibility, strategically positioned mirrors and a rear-view camera for safer operation.

Key specifications

• Overall Length: 12,500 mm
• Overall Width: 2,575 mm
• Overall Height: 3,445 mm
• Basic boom length: 10.54 m
• Max. main boom length: 41 m

Product specifications (table)
Max. rated lifting capacity : 25 t
The axle distance : 4635+1350 mm
Engine model : ISDe285 30 (EU Stage III)
Max. rated torque of the engine : 970/1200-1700 N·m/(r/min)
Min. turning diameter : 21 m
Outrigger transversal span : 6.42 m
Boom luffing time (lifting/descending) : 35/50 s
Max. slewing speed : 2.4 r/min
Max. lifting speed: Auxiliary winch (No load) : 130 m/min
Dimensions (L x W x H) : 12500x2575x3445 mm
The total weight during driving : 32000 kg
Max. rated power of the engine : 210/2500 kW/(r/min)
Max. travel speed : 80 km/h
Approach and departure angle : 20° ; 14°
Outrigger longitudinal span : 5.5 m
Boom extension time (extension/retraction) : 80/80 s
Max. lifting speed: Main winch (No load) : 130 m/min

Note
For reference only.

Technical specifications

• Max. rated lifting capacity: 25 t
• Overall dimensions (L x W x H): 12500 x 2575 x 3445 mm
• The total weight during driving: 32,000 kg
• Overall Length: 12,500 mm
• Overall Width: 2,575 mm
• Overall Height: 3,445 mm
• Basic boom length: 10.54 m
• Max. main boom length (key spec): 41 m
• Maximum boom length (description): 49 m
• Maximum jib length (description): 8 m
• The axle distance: 4635+1350 mm
• Engine model: ISDe285 30 (EU Stage III)
• Max. rated power of the engine: 210/2500 kW/(r/min)
• Max. rated torque of the engine: 970/1200-1700 N·m/(r/min)
• Min. turning diameter: 21 m
• Outrigger transversal span: 6.42 m
• Outrigger longitudinal span: 5.5 m
• Boom luffing time (lifting/descending): 35/50 s
• Boom extension time (extension/retraction): 80/80 s
• Max. slewing speed: 2.4 r/min
• Max. lifting speed - Main winch (No load): 130 m/min
• Max. lifting speed - Auxiliary winch (No load): 130 m/min
• Max. travel speed: 80 km/h
• Approach and departure angle: 20° / 14°
