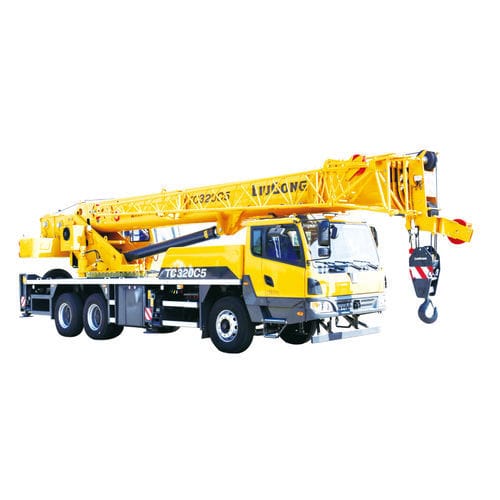

Truck-mounted crane TC320C5boomliftingdiesel
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- boom
- Applications
- lifting
- Engine type
- diesel
- Other characteristics
- hydraulic, compact
- Load
32,000 kg
(70,547.9 lb)- Horizontal reach
42 m
(137'09" )- Driving speed
80 km/h
(49.7 mph)- Drive engine power
970 kW
(1,319 hp)- Swing speed
2.4 rpm
(15.08 rad.min-1)- Width (base)
2,600 mm
(102 in)- Length (base)
12,840 mm
(505.51 in)- Total weight
33,000 kg
(72,753 lb)
Description
Key dimensions
Product description
Technical specifications
- Overall Length: 12,840 mm
- Overall Width: 2,600 mm
- Overall Height: 3,480 mm
Product description
- The TC320C5 is a truck-mounted crane equipped with a five-section U-shaped main boom reaching up to 42 m. The boom uses an optimized single-plate head design for improved strength and overlap. The chassis is compact (12.84 m length, 2.6 m width) with an 11 m turning radius for enhanced site adaptability and maneuverability.
- Powertrain features a Dongfeng Cummins high-torque engine mated to a Fast 9-speed gearbox, delivering a top speed of 80 km/h and 35% gradeability. Fuel consumption is claimed at 35 L/100 km with a 320 L aluminum fuel tank. The hydraulic system integrates post-valve compensation, proportional speed control and a load-sensing energy-saving system for smooth, precise operation (min rotation speed 0.1°/s; hoisting min speed 1.5 m/min). Operator comfort and maintenance access include a sliding-door cab, vibration-damping seat, enlarged toolbox, centralized electrical controls and outrigger-mounted lighting and throttle switches.
Technical specifications
- Max. rated lifting capacity: 32 t
- Engine model: ISD285 30 (Euro III)
- Max. rated power of the engine: 970/1,700 kW/(r/min)
- Max. rated torque of the engine: 1,550/1,400 N·m/(r/min)
- Outrigger span: 6.4 × 5.6 m
- Boom lengths: main boom up to 42 m, five-section "U-shaped"
- Dimensions (L × W × H): 12,840 × 2,600 × 3,480 mm
- Max. travel speed: 80 km/h
- Turning radius: 11 m; Min. turning diameter: 22 m
- Total weight during driving: 33,000 kg
- Fuel tank capacity: 320 L (aluminum)
- Fuel consumption (claimed): 35 L/100 km
- Boom extension time: 90/105 s; Boom luffing time: 40/55 s
- Max. lifting speed (Main winch / Auxiliary winch, no load): 130 m/min
- Max. slewing speed: 2.4 r/min
- Approach / departure angle: 19° / 14°
- Hydraulic minimum speeds: rotation 0.1°/s; hoisting 1.5 m/min
- Axle distance: 1,530 + 4,650 + 1,500 mm
