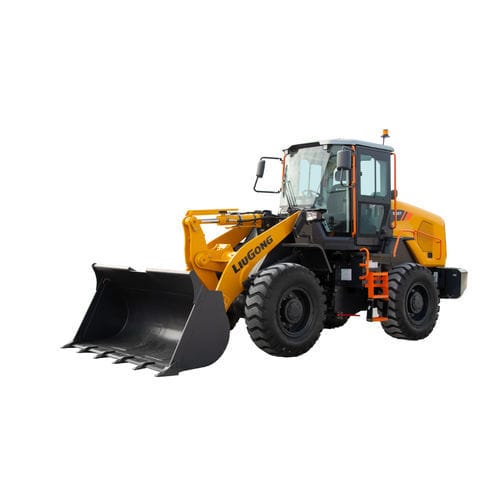

Wheeled loader 835T

articulatedfor constructionforestry

Key specifications

• Operating weight: 10,100–10,800 kg
• Rated load capacity: 3,000 / 3,300 / 3,500 kg
• Rated power: 92 / 110 / 113 kW

Applications

• Road construction
• Forestry
• Agriculture
• Municipal services
• General material handling

Product highlights

• Engine options matched to the powertrain to optimize efficiency and reduce fuel consumption.
• ZF automatic transmission for smooth shifting and reduced noise levels.
• Robust frame design with a wide spread hitch and wear-resistant bucket options to extend service life.
• T-Series cab with ROPS/FOPS certification: pressurized, spacious interior with increased legroom, ample storage, panoramic visibility and 12 air vents for improved climate control.
• Wider access to routine maintenance points to reduce downtime.

Specifications - 835T (Tier 3 / Stage III)
Operating Weight: 10,300 kg
Rated Power: 113 kW (152 hp / 154 ps) @ 2,200 rpm
Raise: 5.1 s
Tipping Load - Full Turn: 7,121 kg
Dump Clearance at Full Height Discharge: 2,996 mm
Model: Cummins QSB5.9
Aspiration: Turbocharged & Air-to-air intercooled
Width over Tires: 2,295 mm
Turning Radius, Outside of Tire: 5,113 mm
GP Bucket: 1.8-3.2 m³
Standard Bucket Capacity: 1.8 m³
Total Hydraulic Cycle Time: 9.7 s
Maximum Travel Speed, fwd: 39.4 km/h
Bucket Breakout Force: 113 kN
Dump Reach at Full Height Discharge: 1,091 mm
Emission Rating: Tier 3/Stage III
Length with Bucket Down: 6,947 mm
Cab Height: 3,270 mm
Bucket Capacities: 1.8-3.2 m³

Specifications - 835T (Tier 3 / Stage III) variant
Operating Weight: 10,800 kg
Rated Power: 110 kW (148 hp / 150 ps) @ 2,000 rpm
Raise: 4.7 s
Tipping Load-Full Turn: 7,100 kg
Dump Clearance at Full Height Discharge: 2,918 mm
Model: Yuchai YCA05K150
Aspiration: Turbocharged & Air-to-air intercooled
Width over Tires: 2,295 mm
Turning Radius, Outside of Tire: 5,113 mm
GP Bucket: 1.7-3.0 m³
Standard Bucket Capacity: 2.0 m³
Total Hydraulic Cycle Time: 9.1 s
Maximum Travel Speed, fwd: 40 km/h
Bucket Breakout Force: 102 kN
Dump Reach at Full Height Discharge: 1,109 mm
Emission Rating: Tier 3/Stage III
Length with Bucket Down: 7,175 mm
Cab Height: 3,270 mm
Bucket Capacities: 1.8-3.2 m³

Specifications - 835T (Tier 2 / Stage II)
Operating Weight: 10,100 kg
Rated Power: 92 kW (123 hp / 125 ps) @ 2,000 rpm
Raise: 5.5 s
Tipping Load-Full Turn: 7,700 kg
Dump Clearance, Full Height Discharge: 3,000 mm
Model: Yuchai YC6J125Z
Aspiration: Turbocharged
Width over Tires: 2,295 mm
Turning Radius, Outside of Tire: 5,090 mm
GP Bucket: 1.7-3.0 m³
Standard Bucket Capacity: 1.8 m³
Total Hydraulic Cycle Time: 9.7 s
Maximum Travel Speed, rev: 38 km/h
Bucket Breakout Force: 107 kN
Dump Reach at Full Height Discharge: 1,034 mm
Emission Rating: Tier 2/Stage II
Length with Bucket Down: 7,135 mm
Cab Height: 3,340 mm
Bucket Capacities: 1.5-3.0 m³; Light Material Bucket: 3.2 m³, 3.5 m³

Technical summary

• Model: 835T
• Operating weight range: 10,100–10,800 kg
• Rated load capacity options: 3,000 / 3,300 / 3,500 kg
• Rated power options: 92 kW, 110 kW, 113 kW
• Engine options: Cummins QSB5.9; Yuchai YCA05K150; Yuchai YC6J125Z
• Aspiration: Turbocharged; Turbocharged & Air-to-air intercooled (depending on engine)
• Emission rating: Tier 3 / Stage III and Tier 2 / Stage II (depending on variant)
• Standard bucket capacity: 1.8–2.0 m³ (depending on variant)
• GP bucket capacity: 1.7–3.2 m³
• Light material bucket options: 3.2 m³, 3.5 m³
• Bucket breakout force: 102–113 kN
• Total hydraulic cycle time: 9.1–9.7 s
• Maximum travel speed: up to 40 km/h (forward)
• Width over tires: 2,295 mm
• Turning radius (outside of tire): ~5,090–5,113 mm
• Cab height: ~3,270–3,340 mm
• Length with bucket down: ~6,947–7,175 mm
• Dump clearance at full height: ~2,918–3,000 mm
• Dump reach at full height discharge: ~1,034–1,109 mm
• Tipping load (full turn): ~7,100–7,700 kg
• Raise time: ~4.7–5.5 s
