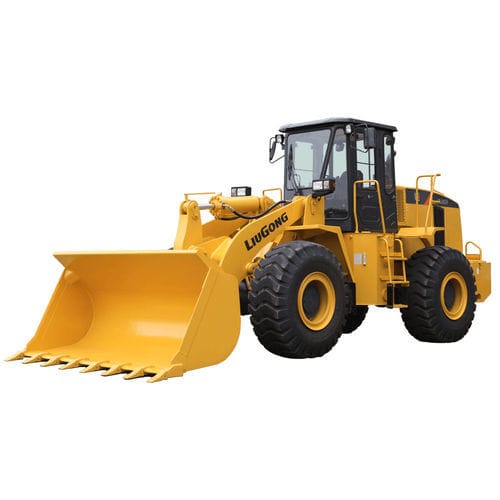

Wheeled loader ZL50CN

articulatedlargediesel

Key specifications

• Operating Weight: 16,600 kg
• Rated Load Capacity: 5,300 kg
• Rated Power: 162 kW

Highlights / Features

• Optimized bucket shape improves material penetration and fill factor, reducing spillage.
• High-capacity A/C provides all-round cooling by drawing air from the machine's rear and underside.
• Optimized preheating system and hyperboloid efficient fan enable operation from -30 °C to 45 °C.
• Optional attachments (multiple buckets, pallet fork, handling arm, grapple, snow blade) expand application versatility.

Product specifications (table)
Operating Weight: 16,600 kg
Rated Power: 162 kW (217 hp / 220 ps) @ 2,000 rpm
Raise: 5.6 s
Tipping Load-Full Turn: 11,100 kg
Dump Clearance, Full Height Discharge: 3,037 mm
Model: Cummins 6LT9.3
Aspiration: Turbocharged & Air-to-air intercooled
Width over Tires: 2,750 mm
Turning Radius, Outside of Tire: 6,086 mm
GP Bucket: 2.7-4.2 m³
Rock Bucket: 2.5 m³, 2.7 m³, 3.0 m³


Additional performance & dimensions (table)
Standard Bucket Capacity: 3.0 m³
Total Hydraulic Cycle Time: 10 s
Maximum Travel Speed, fwd: 37 km/h
Bucket Breakout Force: 168 kN
Dump Reach at Full Height Discharge: 1,169 mm
Emission Rating: Tier 2 / Stage II
Length with Bucket Down: 7,919 mm
Cab Height: 3,500 mm
Bucket Capacities: 2.7-5.0 m³
Light Material Bucket: 5.6 m³
Slag Bucket: 2.7 m³


Technical specifications

• Model name: ZL50CN
• Operating Weight: 16,600 kg
• Rated Load Capacity / Payload: 5,300 kg
• Rated Power: 162 kW (217 hp / 220 ps) @ 2,000 rpm
• Engine model: Cummins 6LT9.3
• Aspiration: Turbocharged & Air-to-air intercooled
• Emission rating: Tier 2 / Stage II
• Standard bucket capacity: 3.0 m³ (other bucket options 2.7-5.0 m³; GP 2.7-4.2 m³; light material 5.6 m³; rock and slag bucket options listed)
• Bucket breakout force: 168 kN
• Tipping load (full turn): 11,100 kg
• Dump clearance (full height): 3,037 mm; Dump reach at full height: 1,169 mm
• Length with bucket down: 7,919 mm; Cab height: 3,500 mm; Width over tires: 2,750 mm
• Turning radius (outside of tire): 6,086 mm
• Maximum travel speed (forward): 37 km/h
• Total hydraulic cycle time: 10 s; Raise time: 5.6 s
• Operational temperature adaptability: optimized preheating and fan suitable for -30 °C to 45 °C
• Optional attachments: multiple buckets, pallet fork, handling arm, grapple, snow blade
