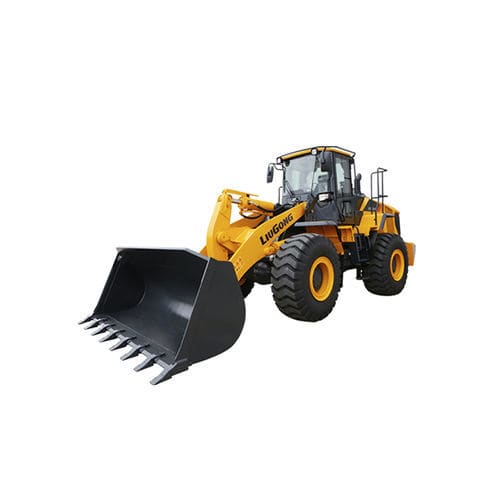

Wheeled loader 856H

articulatedmining and quarryingfor construction

Key specifications

• Operating weights: 17,150–20,214 kg (variant-dependent)
• Payload: 5,000 / 5,500 kg
• Rated power: 162 / 168 kW (max gross power up to 183 kW)

Industries

• Road
• Forestry
• Mining
• Quarrying
• General construction and materials handling

Product highlights

• Customized Cummins engine options matched to driveline for maximum low‑rpm torque
• Variable displacement hydraulic system for improved efficiency and reduced oil consumption
• Wide spread hitch, tapered roller bearings and robust components for high load capacity
• Automatic transmission with FNR for comfortable, efficient operation
• Pressurized FOPS/ROPS cab with 309° panoramic visibility for operator comfort and safety
• Forward‑tilting engine hood for wide service access and ground‑level maintenance
• Single‑layer, parallel‑arranged radiator design for easy cleaning

856H (Tier 2 / Stage II) - Technical data
Operating weight: 17,900 kg
Rated power: 162 kW (217 hp / 220 ps) @ 2,200 rpm
Hydraulic cycle time: 9.3 s
Maximum travel speed: 38 km/h
Bucket breakout force: 180.7 kN
Dump reach, full height discharge: 1,231 mm
Emissions: Tier 2 / Stage II
Length with bucket down: 8,100 mm
Cab height: 3,500 mm
Bucket capacities: 2.7–5.6 m³
Light material bucket: 5.6, 6.0 m³
Standard bucket capacity: 3.5 m³
Payload: 5,500 kg
Raise time: 5.8 s
Tipping load - full turn: 12,600 kg
Dump clearance, full height discharge: 2,978 mm
Model (engine): Cummins 6LTAA9.3
Aspiration: Turbocharged & air-to-air intercooled
Width over tires: 2,750 mm
Turning radius, outside of tire: 6,308 mm
GP bucket: 2.7–5.2 m³
Rock bucket: 2.5, 2.7, 3.0 m³

856H (Tier 3 / Stage III) - Technical data
Operating weight: 18,100 kg
Rated power: 162 kW (217 hp / 220 ps) @ 2,200 rpm
Hydraulic cycle time: 9.4 s
Maximum travel speed: 38.6 km/h
Bucket breakout force: 180.7 kN
Dump reach, full height discharge: 1,231 mm
Emissions: Tier 3 / Stage III
Length with bucket down: 8,390 mm
Cab height: 3,500 mm
Bucket capacities: 2.7–5.6 m³
Light material bucket: 5.6, 6.0 m³
Slag bucket: 2.7 m³
Standard bucket capacity: 3.5 m³
Payload: 5,500 kg
Raise time: 5.5 s
Tipping load - full turn: 12,600 kg
Dump clearance, full height discharge: 2,978 mm
Model (engine): Cummins QSL9.3
Aspiration: Turbocharged & air-to-air intercooled
Width over tires: 2,750 mm
Turning radius, outside of tire: 6,207 mm
GP bucket: 2.7–5.2 m³
Rock bucket: 2.5, 2.7, 3.0 m³

856H (Stage V) - Technical data
Operating weight: 20,150 kg
Rated power: 168 kW (225 hp / 228 ps) @ 2,000 rpm
Maximum gross power: 183 kW (245 hp / 248 ps) @ 1,700 rpm
Rated load: 5,500 kg
Raise time: 5.3 s
Total cycle time: 10.2 s
Tipping load - full turn: 13,647 kg
Dump clearance, full height discharge: 2,862 mm
Bucket breakout force: 153 kN
Dump reach, full height discharge: 1,207 mm
Emissions: EU Stage V
Length with bucket down: 8,303 mm
Cab height: 3,450 mm
Bucket capacity: 3.0–6.0 m³
Light material bucket: 5.6 m³
Rock bucket: 2.5, 2.7, 3.0 m³
General purpose bucket: 3.2 m³
Model (engine): Cummins B6.7
Aspiration: Turbocharged & air-to-air intercooled
Width over tires: 2,750 mm
Turning radius, outside of tire: 6,195 mm

Technical specifications

• Model: 856H
• Brand: LiuGong
• Operating weight (range across variants): ~17,900 - 20,150 kg
• Payload: 5,000 / 5,500 kg (depending on variant)
• Rated / maximum power options: 162 kW, 168 kW; maximum gross power up to 183 kW
• Engine options: Cummins 6LTAA9.3; Cummins QSL9.3; Cummins B6.7 (varies by stage)
• Emissions standards available: Tier 2 / Stage II, Tier 3 / Stage III, EU Stage V
• Bucket capacities: GP & rock options from ~2.5 m³ up to 6.0 m³ (standard bucket 3.2–3.5 m³ depending on variant)
• Maximum travel speed: up to ~38.6 km/h
• Width over tires: 2,750 mm
• Cab height: 3,450 - 3,500 mm
• Typical working features: automatic transmission with FNR, pressurized FOPS/ROPS cab with 309° visibility, forward-tilting engine hood, ground-level servicing, variable displacement hydraulics
