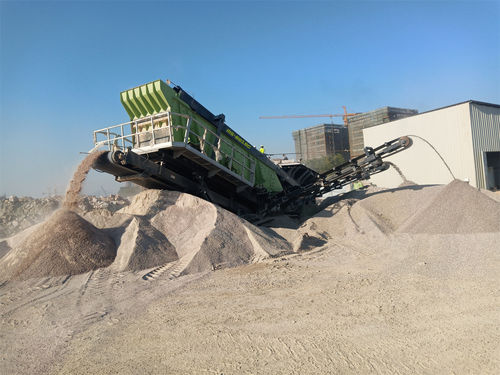

Dry screening screener S11Econstructionfor miningfor recycling
Add to favorites
Compare this product
Characteristics
- Function
- dry screening
- Applications
- for recycling, for mining, construction, sorting
- Type
- vibrating
- Material
- for bulk materials, for waste
- Other characteristics
- inclined, 3-deck
- Weight
28,700 kg
(63,273 lb)- Screening surface
10.8 m²
(116.3 ft²)- Capacity
350 t/h
(214 lb/s)- Engine power
73.5 kW
(99.93 hp)
Description
Main features
High exciting force, large stroke and high screening capacity. Dual Power hybrid drive allows operation from mains or onboard diesel generator. Three-deck screening surface 6000×1800 mm, screening power 17 kW.
Screening specifications
Technical parameters
Options
Applications
Notes
High exciting force, large stroke and high screening capacity. Dual Power hybrid drive allows operation from mains or onboard diesel generator. Three-deck screening surface 6000×1800 mm, screening power 17 kW.
Screening specifications
- Screening surface (L×W): 6000×1800 mm
- Number of decks: 3
- Screening power: 17 kW
- Feeding capacity: 350 t/h
- Maximum feed size: 200 mm
- Feeding height: 2410 mm
- Crushing/processing capacity: 120–300 t/h
- Overall weight: 28.7 t
- Transportation dimensions (L×W×H): 15080×3680×3850 mm
- Working dimensions (L×W×H): 13480×13270×5860 mm
Technical parameters
- Product model: S11E
- Drive mode: Hybrid (Dual Power)
- Total crushing power: 52 kW
- Engine power: 73.5 kW
- Screening power: 17 kW
Options
- Side discharge/transfer conveyors (optional)
- Iron remover / magnetic separator (optional)
- Diesel-electric generator for off-grid operation (optional)
- Dust suppression systems (optional)
- Trommel (drum screen) available on request
- Standard: manual control; other control modes on request
Applications
- Classification of gravel, sand and crushed stone
- Sorting of recycled materials and construction waste
- Quarry and aggregate production lines
Notes
- Processing capacity depends on material hardness, feed size and desired product gradation.
- Standard configuration: manual control. Optional items change performance and dimensions.
- Technical data subject to change without notice; final specifications based on delivered equipment.
