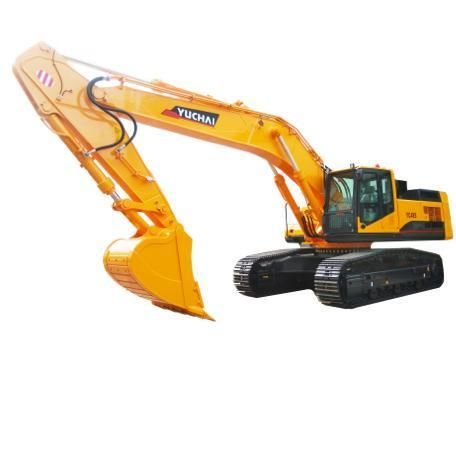

Large excavator YC485

crawler

Product
Yuchai YC485 heavy hydraulic excavator. Model: YC485. Manufactured and marketed by Yuchai.

Specifications
Item: YC485
Operating weight: 47000 kg
(SAE) Rated bucket capacity: 2.3 m³

Engine
Model: Cummins QSM 11
Rated Power: 280 kW / 2100 rpm
Max. Torque: 1898 / 1400 rpm

Hydraulic System
Operating Pressure: 34.3 MPa
Max. Flow Rate: 360*2 L/min

Working Performance
Slewing Speed: 8.9 rpm
Travel Speed (High/Low): 4.9 / 2.7 km/h
Max. Digging Force (Bucket): 256 KN
Max. Digging Force (Arm): 212 KN
Gradeability: 35 %
Max. Traction Force: 368 KN

Travel Device
Track Length (K): 5390 mm
Wheel base of track shoe (J): 4360 mm
Track Gauge (M): 2890 mm
Track Shoe Width (N): 600 mm
Ground Pressure: 88.5 kgf/cm²
Minimum Ground Clearance (H): 722 mm

Tank Capacity
Fuel Tank: 650 L
Hydraulic Tank: 335 L

Dimensions
A Overall Length: 12260 mm
B Overall Width: 3490 mm
C Overall Height: 3755 mm
Counterweight Ground Clearance (F): 1269 mm
Rear Length: 3735 mm
D Upper Width: 3045 mm
E Cab Height: 3280 mm
Rear Swing Radius: 3735 mm
Boom Length Standard: (not specified)
Arm Length Standard: 7060 mm
Arm Length Option: 2900 mm
A Max. Digging Reach: 11540 mm
A' Ground Max. Digging Distance: 11325 mm
B Max. Digging Depth: 7300 mm
B' Max. Effective Digging Depth: 7300 mm
C Max. Vertical Digging Depth: 3395 mm
D Max. Digging Height: 10680 mm
E Max. Dumping Height: 7428 mm
F Minimum Swing Radius: 5015 mm

Features (images provided on product page)
Product page includes multiple feature images illustrating exterior, operator cab and working positions.

Technical specifications

• Model: YC485
• Operating weight: 47000 kg
• Rated bucket capacity (SAE): 2.3 m³
• Engine model: Cummins QSM 11
• Rated power: 280 kW @ 2100 rpm
• Max. torque: 1898 @ 1400 rpm
• Hydraulic operating pressure: 34.3 MPa
• Hydraulic max. flow: 360*2 L/min
• Slewing speed: 8.9 rpm
• Travel speed (High/Low): 4.9 / 2.7 km/h
• Max. digging force (bucket): 256 KN
• Max. digging force (arm): 212 KN
• Gradeability: 35 %
• Max. traction force: 368 KN
• Track length (K): 5390 mm
• Wheel base of track shoe (J): 4360 mm
• Track gauge (M): 2890 mm
• Track shoe width (N): 600 mm
• Ground pressure: 88.5 kgf/cm²
• Minimum ground clearance (H): 722 mm
• Fuel tank capacity: 650 L
• Hydraulic tank capacity: 335 L
• Overall length (A): 12260 mm
• Overall width (B): 3490 mm
• Overall height (C): 3755 mm
• Counterweight ground clearance (F): 1269 mm
• Rear length: 3735 mm
• Upper width (D): 3045 mm
• Cab height (E): 3280 mm
• Rear swing radius: 3735 mm
• Arm length standard: 7060 mm
• Arm length option: 2900 mm
• Max. digging reach (A): 11540 mm
• Max. digging distance (A'): 11325 mm
• Max. digging depth (B): 7300 mm
• Max. effective digging depth (B'): 7300 mm
• Max. vertical digging depth (C): 3395 mm
• Max. digging height (D): 10680 mm
• Max. dumping height (E): 7428 mm
• Minimum swing radius (F): 5015 mm
