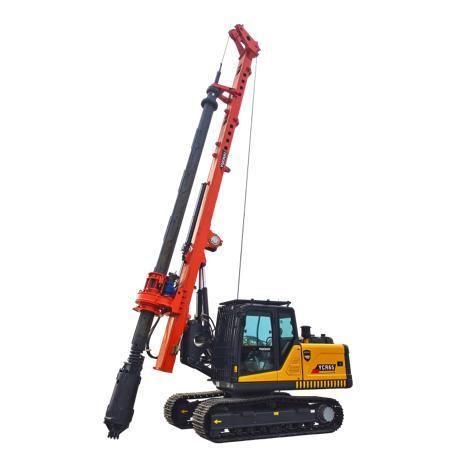

Piling drilling rig YCR65mobilerotarydiesel engine
Add to favorites
Compare this product
Characteristics
- Applications
- piling
- Mobility
- mobile
- Drilling unit
- rotary
- Other characteristics
- diesel engine
- Sector
- for civil engineering
- Drilling diameter
Max.: 1,200 mm
(47 in)Min.: 600 mm
(24 in)- Drilling depth
27 m
(88'06" )- Rope diameter
12 mm, 18 mm
(0 in, 1 in)- Overall length (working)
530 cm
(209 in)- Overall width (working)
260 cm
(102 in)- Overall heigth (working)
1,246 cm
(491 in)- Machine weight
22,000 kg
(48,501.7 lb)- Motor power
92 kW
(125.09 hp)- Overall length (when moving)
1,152 cm
(454 in)- Overall width (when moving)
260 cm
(102 in)- Overall height (when moving)
348 cm
(137 in)
Description
Overview
Key technical specifications
Performance & winches
Mast & drilling capacity
Dimensions & weight
Recommended drill pipe
- Rotary drilling rig model YCR65 equipped with engine yuchaiYCF36125
- Rated power 92 kW at 2200 rpm; rotary drive max torque 65 kN·m
- Suitable for bored piles and foundation drilling; transportable configuration
Key technical specifications
- Engine model: yuchaiYCF36125
- Rated power / rotary speed: 92 kW / 2200 rpm
- Rotary drive max output torque: 65 kN·m; rotary speed: 0–35 rpm
- Max. pull-down piston push: 110 t; max. pulling force: 130 t; max. pull-down piston stroke: 2000 mm
Performance & winches
- Main winch — max pulling force: 95 t; max pulling speed: 85 m/min; wire rope diameter: φ18 mm
- Auxiliary winch — max pulling force: 95 t; max pulling speed: 75 m/min; wire rope diameter: φ12 mm
Mast & drilling capacity
- Mast rake forwards/backwards: 5°; side/backwards: ±4°
- Max. drilling diameter: 600–1200 mm; max. drilling depth: 27 m
Dimensions & weight
- Machine weight: 22 t
- Transporting state size: 11520×2600×3480 mm
- Working state size: 5300×2600×12460 mm
Recommended drill pipe
- Drill pipe configuration: MZ/JS φ299-4×7.6 m
