Liquids sample cell MC-D

heatablemeasurement

Product Introduction

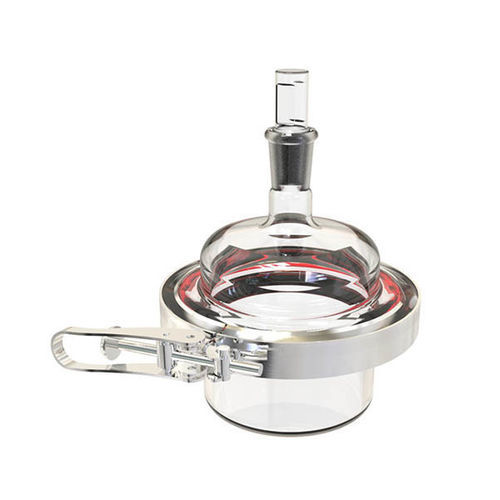

MC-D Migration Test Cell is designed for pre-treatment of migration tests on food-contact materials and articles. It meets GB 5009.156-2016 requirements and is applicable to non-volatile food simulants defined in GB/T 23296.1-2009, GB 31604.1-2015 and related standards. It provides standardized conditions for safety assessment and is used by third-party laboratories, packaging manufacturers and research institutes.

Executive Standards
Conforms to national and international standards including GB/T 23296.1-2009, EN13130-1:2004, GB 5009.156-2016, GB 31604.1-2015 and EN1186-1:2002 to ensure repeatability and recognition of test results.

Core Technical Parameters
Contact Mode: Single-sided contact
Contact Area: 99.17 cm²
Contact Surface Diameter: Ø112.4 mm
Volume: 300 mL
Operating Temperature: 5°C ~ 120°C

Product Features

• Designed per Type-D cells in EN1186-1:2002 Appendix C, GB/T 23296.1-2009 Appendix D and EN13130-1:2004 Appendix D to ensure consistency of migration results.
• Supports both migration-cell and total-immersion methods for diverse pre-treatment workflows.
• Borosilicate glass construction offers high chemical stability and low extractables, minimizing interference with migration determinations.
• Adjustable stainless-steel latches provide simple operation and secure sealing to prevent burst during high-temperature tests with various food simulants.
• Can be sealed with a glass plug for non-reflux (total immersion) tests at ambient and elevated temperatures.
• Provides a ground-glass joint for direct connection of a condensation reflux tube when reflux immersion is required.

Application Fields
Suitable for pre-treatment of migration tests for food-contact materials exposed to simulants such as water, acetic acid and ethanol; ideal for laboratory QC, third-party testing and packaging manufacturers.

Conclusion
The MC-D Migration Test Cell is a standards-compliant accessory for food-contact material safety testing. Made of borosilicate glass, it supports migration-cell and total-immersion methods and is compatible with reflux and non-reflux workflows, delivering repeatable pre-treatment results for QC and compliance verification.

Technical specifications

• Item NO.: MC-D
• Contact Mode: Single-sided contact
• Contact Area: 99.17 cm²
• Contact Surface Diameter: Ø112.4 mm
• Volume: 300 mL
• Operating Temperature: 5°C ~ 120°C
• Standards: GB/T 23296.1-2009; EN13130-1:2004; GB 5009.156-2016; GB 31604.1-2015; EN1186-1:2002
• Material: Borosilicate glass with stainless-steel latches
