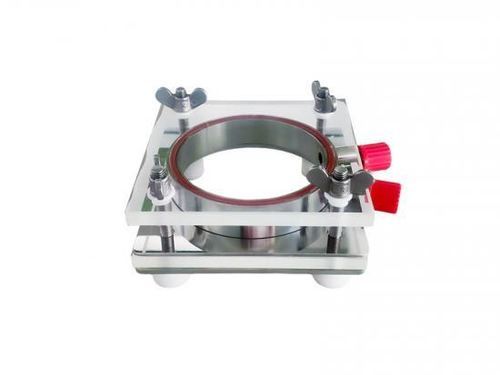

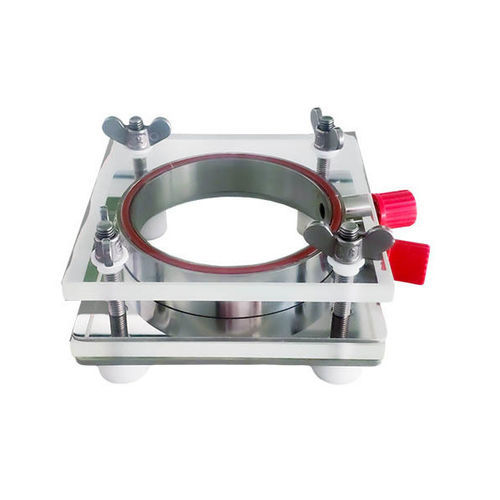

Migration test cell MC-C1

for the food and beverage industryfor quality controllaboratory

Migration Test Cell for overall migration test

Product Introduction
MC-C1 Migration Test Cell is suitable for pre-treatment of migration tests for food-contact materials and products. It is applicable to all non-volatile food simulants specified in GB 31604.1-2015, EN1186-1, EN13130-1:2004 and other relevant standards. It provides standardized test conditions to support safety assessment for food-contact flat specimens and is widely adopted by third-party laboratories, food packaging manufacturers and research institutes.

Executive Standards

• GB 5009.156-2016
• GB 31604.1-2015
• GB/T 23296.1-2009
• EN1186-1:2002
• EN 13130-1:2004

Core Technical Parameters
Contact Mode: Single-sided or Double-sided contact
Single-sided Contact Area (Diameter): 100 cm² (Φ112.8 mm)
Double-sided Contact Area: 200 cm²
Volume: 200 mL
Operating Temperature: 5°C ~ 180°C
Overall Dimensions: 175 mm (L) × 140 mm (W) × 63 mm (H)
Net Weight: 2.3 kg

Product Features

• Designed and manufactured according to Migration Cell C (EN1186-1 and EN13130-1) ensuring consistency of migration test conditions.
• Supports both single-sided and double-sided contact to simplify model selection; double-sided contact is suitable for items such as instant-noodle outer packaging and seasoning sachets.
• High-temperature resistant, corrosion-resistant and self-cleaning sealing ring provides reliable sealing, preventing leakage and volatilization of simulants during testing.
• Sealing structure prevents areas outside the test surface from contacting food simulants, guaranteeing a defined valid test area.
• Suitable for pre-treatment of migration tests on a wide range of sheet-shaped food-contact materials and products.

Application Fields
Applicable to migration test pre-treatment of sheet-shaped food-contact materials and products with single-sided exposure to food simulants including water, ethanol, acetic acid, vegetable oil, n-hexane, n-heptane and isooctane.

Conclusion
MC-C1 Migration Test Cell is a standards-compliant auxiliary device for safety assessment of food-contact materials. Supporting single- and double-sided contact modes and featuring reliable sealing to avoid simulant leakage and volatilization, it provides repeatable pre-treatment results suitable for laboratory QC, third-party testing institutes and packaging manufacturers for domestic and export compliance assessment.

Technical Specifications

• Model: MC-C1
• Item No.: MC-C1
• Contact Mode: Single-sided or Double-sided contact
• Single-sided Contact Area (Diameter): 100 cm² (Φ112.8 mm)
• Double-sided Contact Area: 200 cm²
• Volume: 200 mL
• Operating Temperature: 5°C ~ 180°C
• Overall Dimensions: 175 mm (L) × 140 mm (W) × 63 mm (H)
• Net Weight: 2.3 kg
