Product Introduction

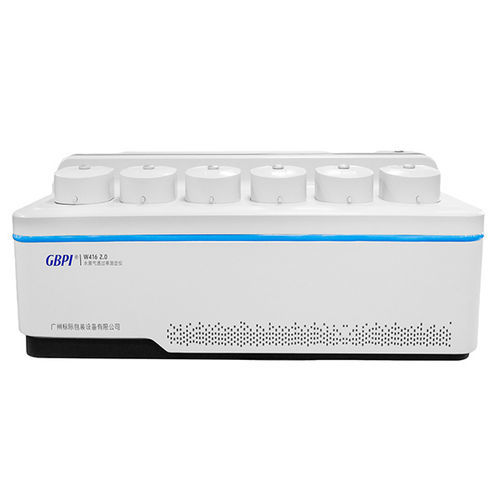

W416 2.0 Infrared Water Vapor Transmission Rate Tester is an upgraded high-precision instrument developed according to GB/T 26253, ASTM F1249 and related international standards. Based on patented infrared moisture sensor technology, it delivers wide-range WVTR measurement for high-, medium- and low-barrier materials. Applicable to films, sheets, paper, packaging and materials used in food, pharmaceutical, medical device, personal care, photovoltaic and electronics sectors; suitable for offline and online packaging testing.

Test Principle
The sample is clamped in the test chamber, creating wet and dry sides. Compressed air is introduced to the wet side while dry nitrogen (carrier gas) flows through the dry side at a controlled rate. Water vapor migrates across the sample into the dry chamber and is carried to the infrared sensor. WVTR is calculated from the sensor's electrical output.

Compliant Standards

• ISO 15106-2
• ISO 21760-1
• ASTM F1249
• GB/T 26253
• JIS K7129-2
• Chinese Pharmacopoeia 4010
• YBB 00092003

Technical Specifications
Item | Value
Test Range | 0.002 ~ 100 g/(m²·24h)
Repeatability | 0.005 or 2% (whichever is greater)
Resolution | 0.0001 g/(m²·24h)
Temperature Range | 15 ~ 45 °C
Temperature Accuracy | ±0.1 °C
Humidity Range | 5 ~ 90 %RH, 100 %RH
Humidity Accuracy | ±1 %RH
Test Area | 50.24 cm²
Sample Size | Φ100 mm
Sample Thickness | ≤ 3 mm
Test Chambers | 6 channels (independent data)

Key Features

• Patented high-precision infrared moisture sensor with ultra-high stability and resolution down to 0.0001 g/(m²·24h).
• Automatic pneumatic control system with one-key sample clamping for reliable sealing and easy operation.
• Precise temperature and humidity control: ±0.1 °C and ±1 %RH for stable results.
• Six independent test chambers for high-throughput measurements.
• Real-time display of up to five curves: WVTR-time, temperature-time, humidity-time, flow-time and voltage-time.
• Intelligent OS with audit trail and multi-level user management, compliant with GMP requirements.
• Calibration traceable to national standard substances (GBW(E)130543 / GBW(E)130544).
• Supports laboratory IoT platform for remote data management, diagnostics and resource access.

Applications

• Plastic films — PET, PE, BOPP, composite and biodegradable films, metalized films.
• Sheets — Rigid pharmaceutical sheets, metal-composite sheets, rubber sheets.
• Paper & Paperboard — Coated papers, aluminum papers, paper–plastic composites.
• Medical patches — Plasters, transdermal patches, wound care dressings.
• Packaging components — Bottles, tubes, trays, pouches and plastic containers.

Characteristics / Technical Specifications

• Model: W416 2.0
• Test Range: 0.002 ~ 100 g/(m²·24h)
• Resolution: 0.0001 g/(m²·24h)
• Repeatability: 0.005 or 2% (whichever is greater)
• Temperature Range: 15 ~ 45 °C; Accuracy: ±0.1 °C
• Humidity Range: 5 ~ 90 %RH, 100 %RH; Accuracy: ±1 %RH
• Test Area: 50.24 cm²; Sample Size: Φ100 mm; Sample Thickness: ≤ 3 mm
• Test Chambers: 6 independent channels
• Sensor: Patented infrared moisture sensor
• Standards: GB/T 26253, ASTM F1249, ISO 15106-2, ISO 21760-1, JIS K7129-2, Chinese Pharmacopoeia 4010, YBB 00092003
