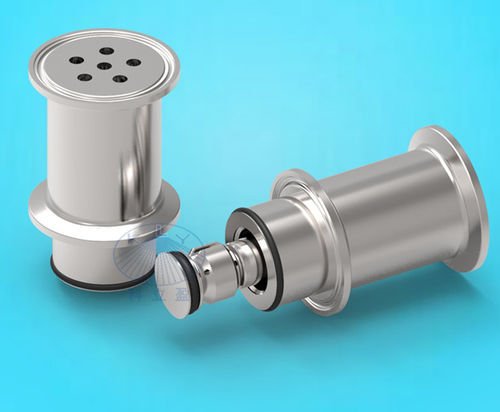

Model: Keliying Retractable rotary tank cleaning machine
Material: 316LSS
Max. Diameter: 1-2 m
Operating pressure: 1-6 bar
Stroke length: 30mm, 50mm, 100mm
Spray angle: 320 degree
Connection: 1 1/2" clamp connection (50.5mm)
Tank diameter: 1-2 m
Flow rate: 1-10 m3/h
Design feature:
When a certain fluid pressure is reached, the pop up type rotating cleaning nozzle is automatically extended from the enclosure. These free-spinning rotating nozzles can be installed flush in the tank wall. They are also suitable for cleaning pipes and for applications that use foam. They are of particular interest for applications in the food and beverage industry as well as for the pharmaceutical and chemical industry.
Some important features at a glance:
low wear PEEK body
slide bearing
easy to maintain
drainable
designed for the food Industrie
