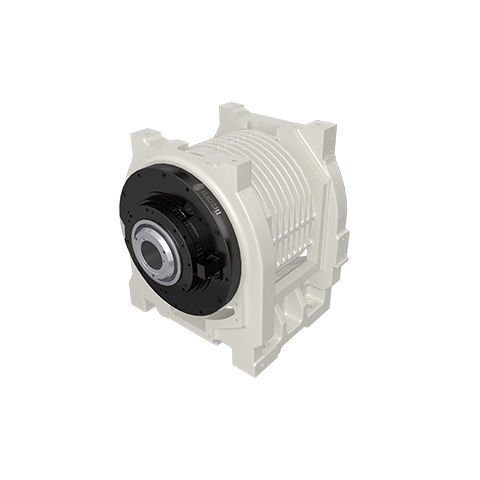

Cutting motor spindle DGZC-27506／7.5-WVS

millingturningfinish

This product is a kind of highly precise heavy-load lathe motorized spindle,whose max. speed could reach 6000 rpm. With A2-5 nose.With a box structure, this product is fitted with 5.5/7.5 kW double-winding asynchronous generator and the rated low-speed torsion could reach 105.5 Nm,and max. torsion of 210 Nm. It can be configured with 6” and 8” chuck and oil cylinder and it used for finish turning and heavy cutting of steel parts, casting and nonferrous metals as well as installation of Type 46 CNC lathe and turning-milling composite machine tool. As a kind of high precision lathe motorized spindle that could satisfy the requirements of heavy cutting. It is mainly applied to such fields as motor, aerospace, hardware, etc. Features 1. Application of high-performance heavy load bearing: The rigidity is ≥650N/μm through optimizing bearing application, making it applicable to 4mm heavy cutting of stainless steel. The processing efficiency is also high. 2. High-performance double-winding asynchronous generator: Rated power: Low speed: 5.5KW High speed: 7.5KW Rated torque: Low speed:105.5Nm High speed:54Nm Max. speed: 6000 rpm Max. torque: 210Nm 3.Diverse configuration: Voltage and encoder could be chosen based on the specific demands. Max. current (A) - Low speed: 26A High speed: 31A Max. torque (Nm) - Low speed:210Nm High speed: 108Nm Rated voltage (V) - 350 Rated power (S1/100%) (kW) - Low speed: 5.5KW High speed: 7.5KW Rated torque (S1/100%) (Nm) - Low speed:105.5Nm High speed:54Nm Balancing grade - G0.4 Nose form - A2-5 Taper of bore hole - 1:4 Cone run-out (mm) - ≤0.003 Front face run-out (mm) - ≤0.003
