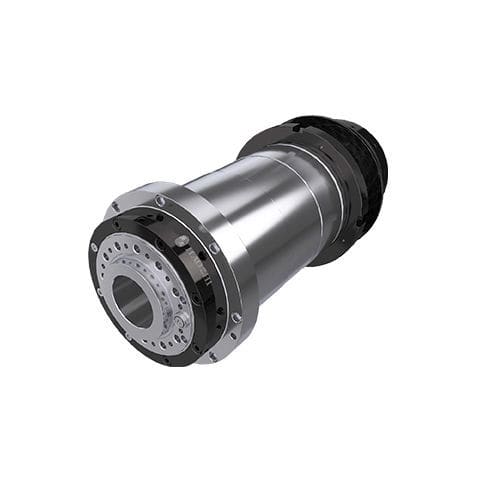

Cutting spindle DGZC-20045A2-FWC

machiningturningbelt-driven

This product is a kind of heavy-load lathe externally-driven spindle, the max. speed of which is 4,500rpm. With A2-6 nose design, it can be configured with Φ200mm V-shaped belt pulley as well as 8” and 10” chucks and oil cylinders. It is applicable to finish turning (FT) and re-machining of steel parts, casting and nonferrous metals as well as the installation of Model 52 CNC lathe and turning-milling composite machine tool. As a kind of lathe externally-driven spindle satisfying re-machining demands, it is mainly applied to processing in such fields as auto, aerospace and hardware. Features 1.Application of high-performance bearing With the application of bearing, it could realize a rigidity ≥800N/μm. The product can be used for 5mm re-cutting of stainless steel with a high efficiency. 2.Diverse configuration Belt pulley and coding mode can be customized based on requirements. Balancing grade - G0.4 Nose form - A2-6 Taper of bore hole - 1:20 Cone hopping (mm) - ≤0.003 Front face hopping (mm) - ≤0.003 Hopping at 300mm of standard bar - ≤0.01 Bearing model - NN3018+NN3020+2x100B through-hole diameter (mm) - φ66 Coding belt pulley - 8M Weight (kg) - 84 Mode of installation - Horizontal installation A - φ200 B - φ240 C - φ106 D - φ130 L - 541.45 L1 - 300 L2 - 14
