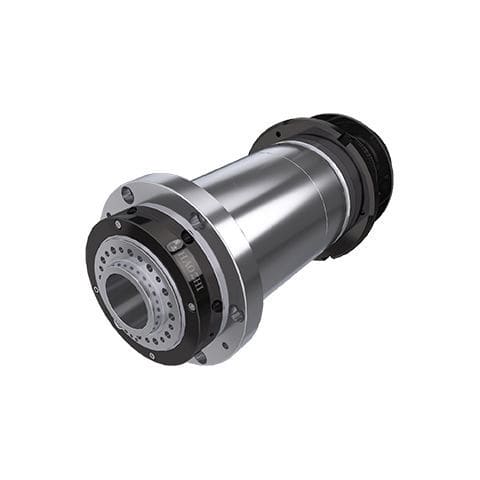

Machining spindle DGZC-17006K7-FC

millingturningfinish

This product is a kind of high-precision lathe externally-driven spindle, the max. speed of which is 6,000rpm. With A2-5 nose design,Φ170mm and 8M synchronous pulleys are used. It can be configured with 6” and 8” chucks and is applicable to finish turning (FT) and re-machining of steel parts, casting and nonferrous metals as well as the installation of CNC latheit supports the installation of Model 46 CNC lathes and turning-milling composite machine tool.As a kind of high-precision CNC externally-driven spindle supporting re-machining,it is mainly applied to processing in such fields as auto, aerospace and hardware. Features 1. Application of high-performance bearing With the application of bearing, the product could realize high-precision processing and re-machining with a rigidity ≥600N/μm. The roughness of cut sample Ra ≤0.4μm; even tool grain; roundness ≤2μm; 2. High stability Full simulating optimization and all-dimensional tests and experiments; the product has been used and verified by over 10,000 clients to ensure its stability. 3. Diverse configuration Belt pulley and coding mode can be customized based on requirements. Balancing grade - G0.4 Nose form - A2-5 Taper of bore hole - 1:19.18 Cone hopping (mm) - ≤0.003 Front face hopping (mm) - ≤0.003 Hopping at 300mm of standard bar - ≤0.01 Bearing model - 4x7016 through-hole diameter (mm) - φ56 Coding belt pulley - XL Weight (kg) - 59 Mode of installation - Horizontal installation A - φ170 B - φ220 C - φ82 D - φ100 L - 493 L1 - 260 L2 - 12
