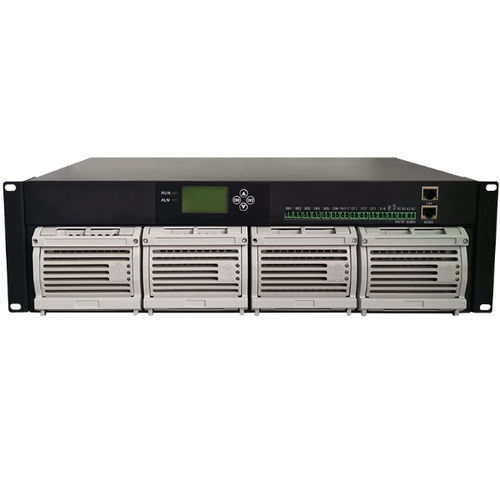

3U power supply VT-220 / 48-200AS

DCregulatedsingle-output

Description
AC input: 176 VAC – 280 VAC. DC output: 40 VDC – 60 VDC. Dimensions: 482 × 410 × 132 mm (19" 3U). Weight: 21 kg. Warranty: 2-year.

Overview
VT-220/48-200AS is a telecom-grade modular DC rectifier system designed for 19-inch rack installation. The modular architecture enables capacity scaling by adding or removing rectifier modules and integrates monitoring modules for system supervision. Intended for communication and industrial power applications, the system delivers load power and provides battery float and equalization currents under normal operation. Rectifiers support parallel operation and current sharing for redundancy and capacity expansion.

Technical Parameters (table)
Model: VT-220 / 48-200AS
Environmental - Operating temperature: -40°C ~ 55°C
Environmental - Storage temperature: -40°C ~ 70°C
Environmental - Relative humidity: ≤ 90% RH (30°C)
Environmental - Altitude: ≤ 2000 m (derating above 2000 m)
AC Input - AC input system: L＋N＋PE / 220 VAC
AC Input - Input voltage range: 176 VAC ~ 280 VAC
AC Input - Input AC frequency: 45 Hz ~ 65 Hz
AC Input - Max input current: ≤ 51.13 A
AC Input - Power factor: ≥ 0.99
DC Output - Nominal output voltage: 48 VDC
DC Output - Rated output voltage: 53.5 VDC
DC Output - Rated output capacity: 12,000 W
DC Output - Output DC voltage: 40 VDC ~ 60 VDC
DC Output - Output DC current: 0 ~ 50 A (output voltage 48 V)
DC Output - Voltage set-point accuracy: ≤ 1%
DC Output - Efficiency: ≥ 93.2%
DC Output - Noise (peak-peak): ≤ 200 mV (0 ~ 20 MHz)
DC Output - Weighted noise: ≤ 2 mV (300 Hz ~ 3400 Hz)
AC Input Alarm & Protection - AC input over-voltage alarm point: Default: 280 VAC ± 5 VAC*
AC Input Alarm & Protection - AC input under-voltage alarm point: Default: 176 VAC ± 5 VAC
AC Input Alarm & Protection - AC input over-voltage protection recovery difference: Default: 295 VAC ± 5 VAC
AC Input Alarm & Protection - AC input under-voltage protection point: Default: 180 VAC ± 5 VAC*
DC Output Alarm & Protection - DC output over-voltage alarm point: Default: 58 VDC ± 0.5 VDC*
DC Output Alarm & Protection - DC output under-voltage alarm point: Default: 45 VDC ± 0.5 VDC*
DC Output Alarm & Protection - DC output over-voltage protection point: Default: 60 VDC ± 0.5 VDC*
DC Output Alarm & Protection - LLVD: Default: 44 VDC ± 0.5 VDC*
DC Output Alarm & Protection - BLVD: Default: 45 VDC ± 0.5 VDC*
Rectifier - Load sharing: parallel operation with current sharing; imbalance better than ±5% of rated output current
Rectifier - Derating by input (at 45°C): 100% power with input ≥ 154 VAC; output reduces to 300 W capacity when input < 154 VAC; rectifiers stop at input 85 VAC

Technical specifications

• Model: VT-220 / 48-200AS
• Dimensions (W×D×H): 482 × 410 × 132 mm
• Weight: 21 kg
• Nominal output voltage: 48 VDC
• Rated output voltage: 53.5 VDC
• Output voltage range: 40 VDC – 60 VDC
• Rated output capacity: 12,000 W
• Input voltage range: 176 VAC – 280 VAC
• Input frequency: 45 Hz – 65 Hz
• Max input current: ≤ 51.13 A
• Power factor: ≥ 0.99
• Efficiency: ≥ 93.2%
• Operating temperature: -40°C – 55°C
• Storage temperature: -40°C – 70°C
• Relative humidity: ≤ 90% RH (30°C)
• Altitude: ≤ 2000 m (derating above 2000 m)
• Noise (peak-peak): ≤ 200 mV (0 – 20 MHz)
• Weighted noise: ≤ 2 mV (300 Hz – 3400 Hz)
• Protection/alarms: AC/DC over-voltage and under-voltage alarm/protection points (see full technical parameters)
