Solar charger/inverter VT-HF48S220V-5KVA

off-gridhybridall-in-one

Introduction
The VOITA VT-HF48S220V-5KVA is a hybrid inverter/charger combining a pure sine-wave inverter, an integrated MPPT solar charger and an AC battery charger to deliver UPS-capable backup power from a compact unit. The front LCD provides configurable settings (battery charge current, AC/solar charger priority, input voltage thresholds) and simple button operation for on-site tuning.

Key features

• Pure sine wave inverter with cold-start and ability to run without battery
• Built-in MPPT solar controller (MPPT range 120–450Vdc; max PV Voc 500V)
• Configurable input voltage ranges and battery charging current via LCD
• Selectable AC/Solar charger priority and compatibility with mains or generator input
• Automatic restart on AC recovery and comprehensive protections (overload, over-temperature, short circuit)
• Communication: RS485, RS232; optional dry contact and parallel communication port on parallel models

Technical specifications

• Model: VT-HF48S220V-5KVA
• Brand: VOITA
• DC input: 48 VDC (nominal)
• Inverter output: 220VAC, 50Hz (configurable 50/60Hz); Rated output power: 5kVA / 5kW; pure sine wave
• Efficiency: >95% (line mode); inverter peak efficiency 94%
• Dimensions (short spec): 482 × 290 × 113 mm, net weight 13 kg; General spec: 438 × 438 × 130.8 mm, net weight 14 kg
• Color: White; Safety certification: CE

Operating parameters

• Line mode: nominal input 230Vac; configurable low/return/high loss thresholds (example UPS thresholds: 170/180/280 Vac)
• Inverter mode: output regulation ±5%; output frequency 50/60Hz; surge capacity 2× rated power for 5 s; overload protection: 5 s @ ≥150% load; 10 s @ 110–150%
• Charge mode: max combined PV+AC charging current 100 A; max AC charging current 60 A; 3-step charging algorithm with bulk/floating/overcharge setpoints (Flooded 58.4V / AGM 56.4V / Floating 54V / Overcharge 63V)
• Solar input: rated PV power 5,500 W; MPPT voltage range 120–450 Vdc; max PV Voc 500 V; max PV input current 18 A; max PV charging current 100 A

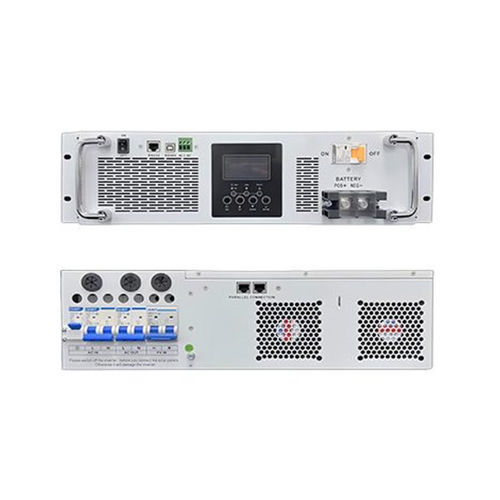

Communications & front panel

• LCD display with status, charge and fault indicators; function buttons and power switch
• AC input/output, PV input, battery input and battery breaker; grounding point
• RS232, RS485 and parallel communication ports (parallel models); optional dry contact

Applications & system architecture

• Designed for off-grid and backup power in small commercial sites, telecom, remote equipment and industrial applications
• Supports PV arrays and optional generator; parallel operation available on parallel models for higher capacity

Environment & protection

• Operating temperature: -10°C to 55°C; storage: -15°C to 60°C; humidity 5–95% RH (non-condensing)
• Protections include overload, over-temperature, short circuit and output short-circuit protection (breaker/electronic)
