Data connector

wire-to-wirespringfor thermocouples

Overview

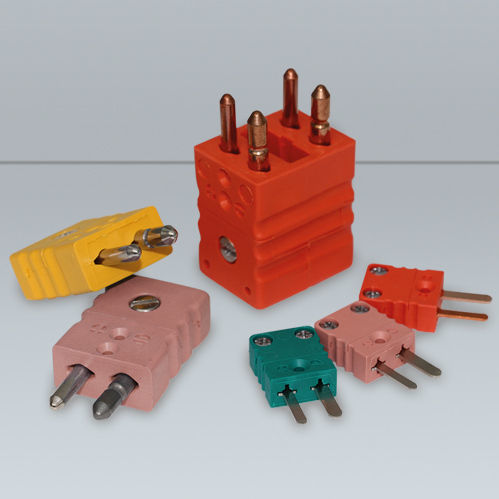

Miniature and standard thermocouple plugs for electrical connection of thermocouple sensors. Compatible with all common thermocouple types and typically kept in stock for rapid supply.

Product characteristics
At GÜNTHER, different plug connections are used depending on the application. These include miniature and standard plugs suitable for all common thermocouples. Contact pins and sockets are designed to be thermally stress-free and the connector geometry prevents reverse polarity by using different pin thicknesses and widths. In standard connectors, spring-loaded sockets provide secure contacts and reduce the risk of accidental disconnection.

Technical specifications

• Types: miniature and standard plug connections
• Compatibility: for all common thermocouple types
• Availability: typically kept in stock
• Contact design: thermally stress-free contact pins and sockets
• Polarity protection: different pin thicknesses and pin widths to prevent reverse polarity
• Contact security: spring-loaded sockets in standard connectors to prevent accidental disconnection
