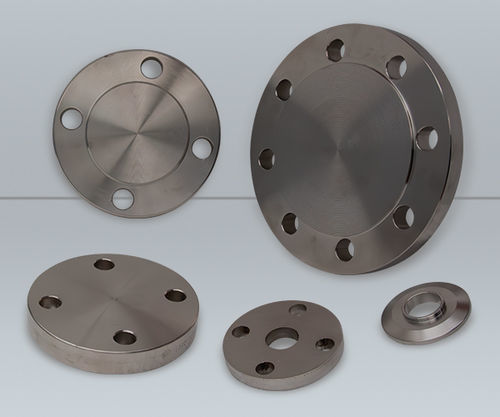

Temperature sensor flange

for high-pressure applicationsstainless steelcarbon steel

Overview
Blind flanges are a reliable solution for the process connection of thermocouples in industrial installations. Designed to be mounted directly to vessels or pipelines, they provide a secure mechanical interface for protective tubes and ensure tight sealing under demanding temperature and pressure conditions.

Product characteristics
Blind flanges are engineered for robust process connections and straightforward installation in industrial environments.

• Tight and secure connection suitable for high-pressure and high-temperature applications
• Flanged directly to vessel or pipeline for stable mounting
• Reliable retention of the protective tube (thermowell)
• Available to multiple standards and material options (stainless steel, carbon steel)

Standards
Blind flanges are available in accordance with DIN EN 1092 and can also be supplied to standards such as DIN 28404, ISO 1609, ASME, and others to meet project requirements.

Technical specifications

• Product type: Blind flanges for thermocouple process connections
• Function: Provides a secure mechanical and sealed connection between protective tube and vessel or pipeline
• Installation: Flanged directly to vessel or pipeline
• Performance: Suitable for high-pressure and high-temperature service
• Standards: DIN EN 1092; available to DIN 28404, ISO 1609, ASME, etc.
• Datasheet: Product group datasheet available (product group 99)
