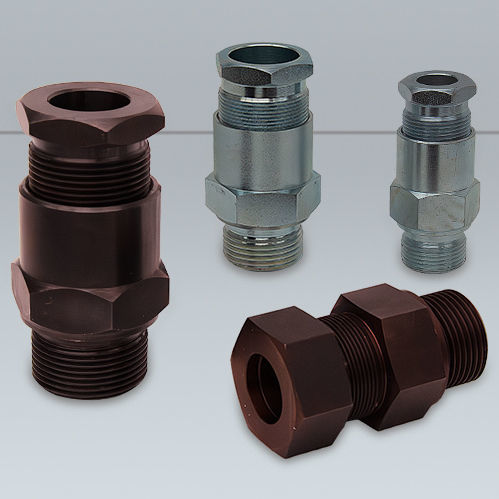

Thermal insulation sleeve

tubularfor temperature sensorsgalvanised steel

Overview
Adjustable threaded process connection for temperature sensors that enables continuous adjustment of sensor insertion length and reduces installation time.

Product characteristics
Threaded sleeves incorporate a packing made of graphited or non-graphited ceramic fibre cord and are classified as adjustable process connections according to DIN EN 50446. The sleeve body is typically untreated or galvanised steel; stainless steel is available as an option. The design allows continuous insertion-depth adjustment while providing sealing appropriate for process applications.

Applications & function
Used to mount temperature sensors in process equipment such as vessels, pipelines and furnaces. Provides flexible insertion-depth adjustment, easier sensor replacement and faster installation, reducing downtime during maintenance.

Materials

• Packing: graphited or non-graphited ceramic fibre cord
• Sleeve body: untreated steel, galvanised steel; optional stainless steel

Compliance
Design complies with DIN EN 50446.

Characteristics / technical specifications

• Type: Adjustable threaded process connection (threaded sleeve)
• Packing material: graphited or non-graphited ceramic fibre cord
• Adjustability: Continuous adjustment of sensor insertion length
• Standards: DIN EN 50446 compliant design
• Typical sleeve materials: untreated steel, galvanised steel, stainless steel (optional)
• Primary function: Time-saving installation and flexible sensor insertion depth adjustment
