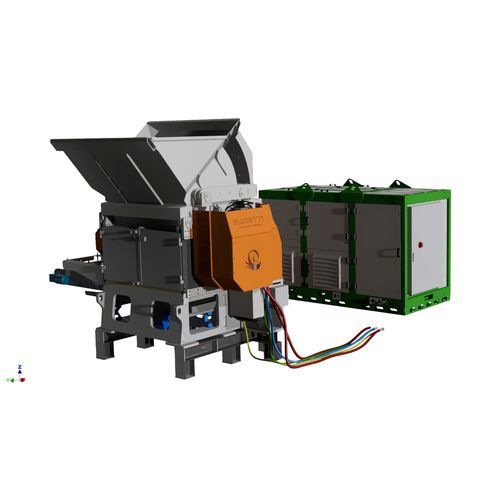

Primary pre-shredder PMG series

for cablesfor aluminumfor non-ferrous materials

Overview The PMG series industrial pre-shredders by Guidetti are purpose-built machines for initial material preparation in recycling plants. Designed for high cutting efficiency and operational flexibility, they process copper and aluminium electrical cables, radiators, non-ferrous metals, plastics and similar waste streams. Production capacity: 400–3,000 kg/h (series range).

Key features

• Available in electromechanical or hydraulic drive versions
• Belt equipped with magnetic pulley for ferrous parts separation to protect downstream equipment
• Simplified maintenance access and modular layout for easy integration
• Configured for pre-shredding to feed granulators and further refining systems

Compatibility and integration Compatible with Guidetti granulators (Sincro eko, Sincro Mill, Wire Pro series) and with the Line MRP® system to ensure smooth integration into complete recycling lines and optimized material flow.

Available models and selected dimensional / technical data

• PMG 400
  Length: 1560 mm / 61.4"
  Width: 4682 mm / 184.3"
  Height: 2740 mm / 107.9"
  Weight: 1420 kg / 3131 lb
  Power: 12.5 kW / 16.8 HP
  Production: 400 kg/h (indicative)
• PMG 600
  Length: 1750 mm / 68.9"
  Width: 4660 mm / 183.5"
  Height: 2720 mm / 107.1"
  Weight: 1840 kg / 4057 lb
  Power: 20.0 kW / 26.8 HP
  Production: kg/h (indicative)
• PMG 900 H
  Length: 2110 mm / 83.1"
  Width: 2070 mm / 81.5"
  Height: 2245 mm / 88.4"
  Weight: 2840 kg / 6261 lb
  Power: 38.5 kW / 51.6 HP
  Production: kg/h (indicative)
• PMG 1200 H
  Length: 3560 mm / 2100 mm
  Width: 2300 mm / 1100 mm
  Height: 2540 mm / 1840 mm
  Weight: 4550 kg / 1700 kg
  Power: 78 kW
  Production: kg/h (indicative)
• PMG 1600 H
  Length: 3895 mm / 3053 mm
  Width: 2516 mm / 1475 mm
  Height: 3129 mm / 1900 mm
  Weight: 7850 kg
  Power: 132 kW
  Production: kg/h (indicative)

Notes Models are offered in multiple variants and sizes to match plant layouts and throughput requirements; production values on the product sheet are expressed as "kg/h" (series range provided above).

Technical specifications

• Intended materials: copper and aluminium electrical cables, radiators, non-ferrous metals, plastics and similar recyclables
• Production capacity: 400–3,000 kg/h (series range, depending on material and configuration)
• Drive options: electromechanical or hydraulic
• Magnetic-pulley belt for ferrous separation
• Designed for simplified maintenance and easy integration into existing plants
• Compatibility: Sincro eko, Sincro Mill, Wire Pro granulators and Line MRP® systems
• Multiple model sizes available (see model data above)
