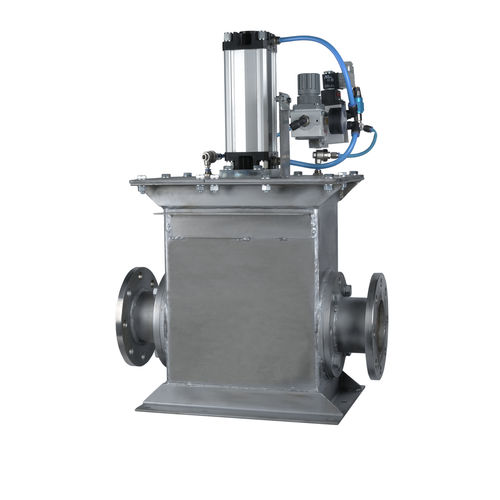

2-way diverter valve DAS

for pneumatic conveying

DAS series diverter valves are studied to be installed on the top of the silos, giving the possibility to divert between more silos or to become a terminal box made in a wear-resistant material. When it is needed to discharge the product into the silo on which the valve is installed, the diverter deviates the material's flow, thanks to a 90° diversion based on an interchangeable expansion drawer, made in a wear-resistant material. When the valve is in the conveyance position a group of pneumatic gaskets, controlled by a pressure switch, guarantees the valve’s seal up to 4 bar. The gasket is easily replaceable. The two-way diverter valve DAS turns out to be essential for most of the storage systems. - Diameter from 2”1/2 up to 10” - Loading of sets of storage bins, transport of non miscible materials, abrasive materials - Wear-resistant - On board pneumatic panel
