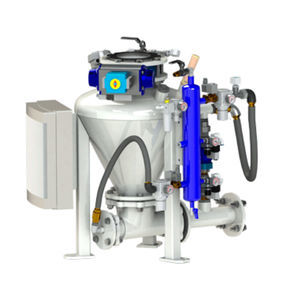

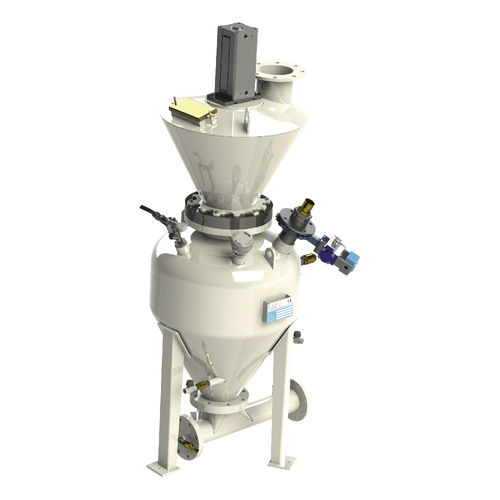

Dense phase pneumatic conveying system GC
transportfor abrasive productsfor abrasive media

dense phase pneumatic conveying system
dense phase pneumatic conveying system
Add to favorites
Compare this product


Characteristics

Type
dense phase
Product applications
transport, for abrasive products, for abrasive media, sand, glass, quartz

Description

GC Type is especially designed for abrasive products transport. Thanks to a unique inlet "Cone Valve" made in Ni-Hard cast iron the wearing problems are widely reduced compared to the standard solution with inlet butterfly valve. This solution is particularly suitable for materials like silica, silica sand, glass beads or glass sand, quartz sand transport and so on. The preloading hopper can be supplied with one or two flanged inlets depending on the application needs. Available sizes go from 24 ltrs up to 1500 ltrs vessels capacity and both dense (with cleaning cycle after each launch) and extra-dense (with full pipeline) versions are possible. These conveyors can be supplied in version for products with high temperature, equipped on load cells for the material weighing before transport or in Atex classified version. - Especially studied Ni-Hard cast iron inlet cone valve - Pre-loading hopper with one or two products’ inlets - Extra dense phase for highly abrasive or fragile products or for products mixing - Optional for products with High Temperature - Optional on load cells for products’ weighing Optional in Atex classified version
