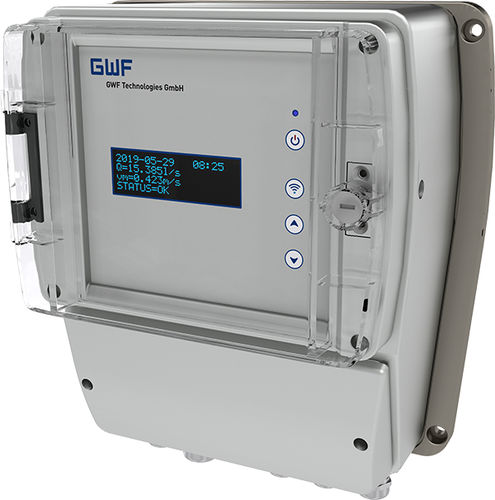

Ultrasonic flow meter Q-Eye PSC
radarfor waterwall-mounted

ultrasonic flow meter
ultrasonic flow meter
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic, radar
Fluid
for water
Installation
wall-mounted
Material
aluminum
Communication
4-20 mA, Modbus, wireless, RS-232
Supply voltage
DC, AC
Protection level
IP66
Other characteristics
bi-directional
Process temperature

Max.: 57 °C
(135 °F)

Min.: 4 °C
(39 °F)

Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Precision

2 %

Description

The Q-Eye PSC area velocity flow meter is designed for stationary flow monitoring of slightly to heavily polluted media in full or partially full pipes or open channels. It uses advanced Pulse-Coherent cross-correlation technology to directly evaluate velocity profiles, making it the best choice for sites with nonuniform or rapidly changing flow conditions. The profiling capacity, in combination with the integrated temperature compensation, eliminates the need for periodic on-site calibration. This significantly reduces the total cost of ownership. Additionally, the Q-Eye PSC measures bi-directional flow over the entire measurement range and near zero flow velocities down to 0.04 m/s. Sensors: Ultrasonic velocity sensor (up to 3 sensors possible) Water level sensors (hydrostatic, ultrasonic or radar) Number of measurement cells: up to 32 Velocity range: ± 5.3 m/s Typical accuracy flow: ± 2 % of reading, depending on site conditions Display: 4 lines, 20 characters Keyboard: 4 keys Data logger: 16 GB MicroSD card Communication: RS-485, Modbus (RS-232 or RS-485), Wireless LAN, 4G (LTE) / 3G (HSPA+) / 2G, Ethernet 10/100 Mbps Inputs: max. 4 x 4-20 mA, 2 x digital Outputs: max. 4 x 4-20 mA, 4 x relay, 2 x pulse Power supply: 9-36 V DC or 100-240 V AC (50/60 Hz) Protection class housing: IP66 (NEMA 4) Enclosure: Aluminum, wall mounted
