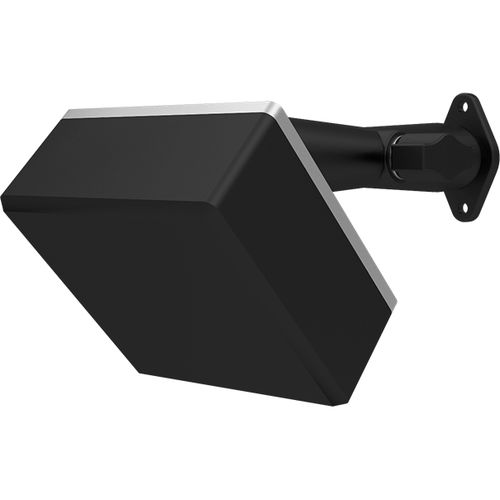

Radar flow meter RV11

volumefor solidswall-mounted

Bi-directional non-contact velocity measurement. Inclusive ball-joint mount for quick and easy installation. TECHNICAL SPECIFICATIONS Frequency: 24 GHz Beam width: 11° (-3dB) Range: ± 0.05 m/s to ± 15 m/s Resolution: 1 mm/s, min. wave height 3 mm Uncertainty velocity: ± 0.5 % of reading ± 0.01 m/s Uncertainty flow: Typically < 5 % of reading, depending on site conditions Min. distance to surface 0.2 m Max. distance to surface 10 m Protection class: IP68 (48 h at 50 kPa, NEMA 6P) Operating temperature: – 40 °C to + 85 °C Dimensions: 242 mm (L mounting), 100 x 100 mm (W x H sensor)
