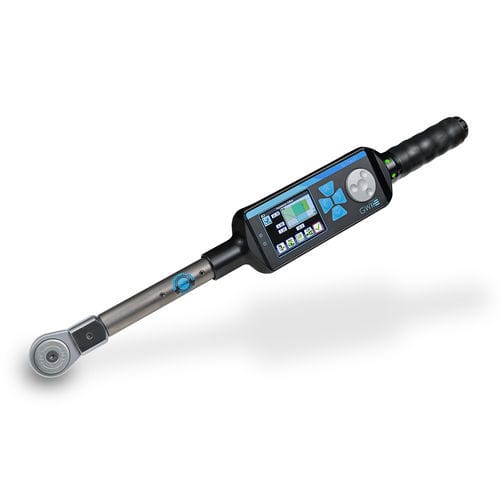

Torque verification tool Q-CHECK ®

Product overview
The tool for your quality assurance for continuous torque measurements for process capability testing according to VDI/VDE 2645-3.

Performance characteristics

• Measuring range 3–1000 Nm
• Audit functions: torque / loosening‑tightening
• Torque measurement for process capability testing in accordance with VDI/VDE 2645-3
• Wireless data transmission: WLAN
• Compatible with analysis software Ceus and QS-Torque
• Intuitive graphical user interface
• 1D / 2D scanner
• 2 GB memory for up to 1,000 screw positions
• Designed to eliminate worker influences for precise results
• Optional upgrade: torque, angle and yield point methods
• Activation available for second measuring channel

Additional features

• Vibration alarm
• Barcode scanner
• Detent and swiveling mounting

Downloads
Technical data sheets available (German and English).

Technical characteristics / specifications

• Measuring range: 3–1000 Nm
• Audit functions: torque / loosening‑tightening
• Standards: Process capability testing according to VDI/VDE 2645-3
• Data transmission: WLAN (wireless)
• Software compatibility: Ceus, QS-Torque
• User interface: Intuitive graphical UI
• Scanner: 1D / 2D
• Memory: 2 GB (up to 1,000 screw positions)
• Measurement integrity: Designed to eliminate worker influences
• Optional methods: Torque, angle, yield point
• Expandable: Activation for second measuring channel
• Additional hardware features: Vibration alarm, barcode scanner, detent and swiveling mounting
