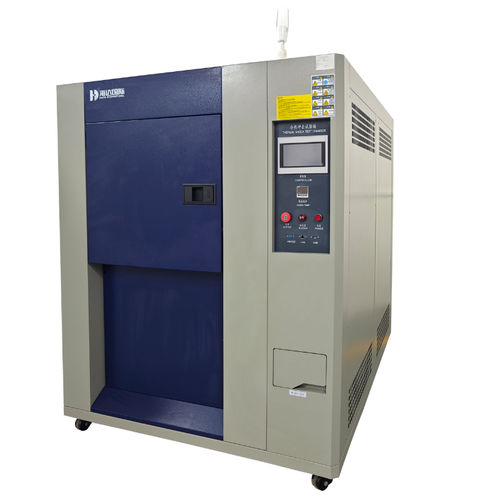

Thermal shock test chamber HD-E703-80
floor-standingstainless steel

thermal shock test chamber
thermal shock test chamber
thermal shock test chamber
Add to favorites
Compare this product


Characteristics

Type
thermal shock
Configuration
floor-standing
Options and accessories
stainless steel
Temperature

Max.: 200 °C (392 °F)

Min.: -70 °C (-94 °F)

Length

40 cm (15.75 in)

Width

50 cm (19.7 in)

Depth

40 cm (16 in)

Description

temperature shock test chamber HD-E703-80 Minimum1 SET Delivery15 days after order. ModelHD-E703-80 CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Specifications temperature shock test chamber 1.High formula memory capacity 2.Color touch panel control system 3.Multiple safety protection device Programmable Thermal Shock Testers The thermal shock tester is divided into three sections: the high temperature chamber, the low temperature chamber and the testing chamber. The color touch panel control system was made in Japan can display Chinese / English. The big size liquid-crystal LCD has been adopted. High formula memory capacity may be set to 120 patterns. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Mins. Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application. Both 2 zone and 3 zone shocks can be chosen. All equipment is fully automatic, and all process are precisely controlled with P.L.C.’S. Of any part of the malfunctions, the machine will automatically shuts down and a warning light switches on. Machine can be shut down automatically in case of electrical power instabilities.
