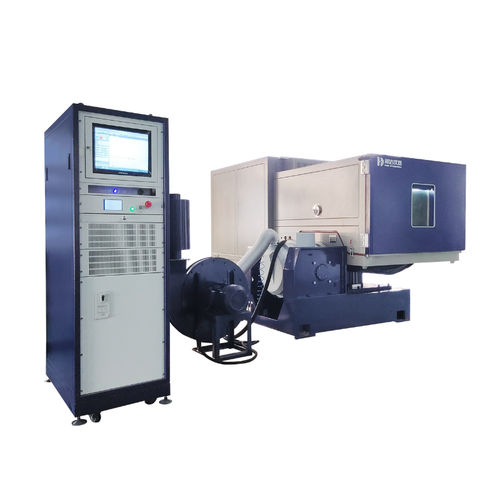

Vibration tester HD-E809

for electrical appliances

Vibration System with Temperature Humidity Test Chamber Minimum1 SET Delivery15 days after order. CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF PRODUCT DESCRIPTION Vibration system adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature&humidity and vibration environment condition. It’s widely used to do environmental endurance test, reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on. TEMPERATURE & HUMIDITY CHAMBER SPECIFICATIONS ItemSpecification Internal dimension (W*D*H)600*800*850mm Temperature range+10~+100℃ Temperature fluctuation±0.5℃ Temperature uniformity2℃ Humidity range20~98%RH (Refer Image below) Humidity fluctuation±2.5%RH Humidity uniformity3%RH Cooling speed1℃/min in average (without loading) Heating speed3℃/min in average (without loading) Internal chamber materialSUS#304 stainless steel, mirror finished External chamber materialStainless steel with paint spray Cooling methodAir-cooled ControllerProgrammable control temperature and humidity Can set different parameter for cyclic test Insulation material50mm high density rigid Polyurethane foam HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater CompressorFrance Tecumseh compressor LightingHeat resistance Temperature sensorPT-100 dry and wet bulb sensor Observation windowTempered glass
