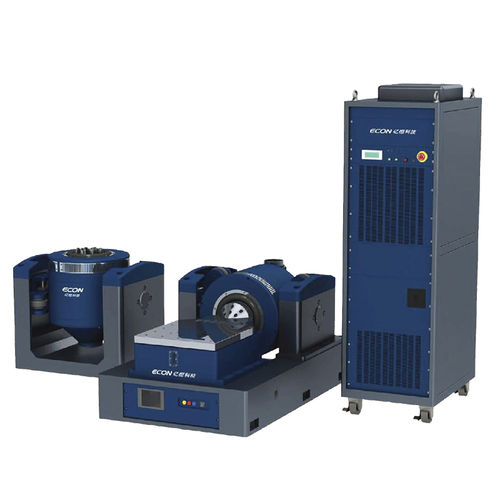

Electronics test system HD-G809

shaker table vibration testing machine Minimum1 SET Delivery15 days after order. CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Product Description: Vibration Shaker Testing Equipment is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality. PERFORMANCE DATA SHEET Shaker Sine force (peak) 30kN Shock force (peak) 60 kN Frequency range 5～2,600 Hz Displacement (continuous) 100 mm Max. Velocity 1.8 m/s Max. Acceleration 75 G Armature Diameter 445 mm 1st order resonant frequency 2,400 Hz Allowable eccentric moment ＞500 Nxm Armature weight 40 kg HE/ST screw dimension M10 (metric) Axial vibration isolation frequency ＜3 Hz Max. Payload 500 kg Magnetic flux leakage ≤1 mT Dimensions (L×W×H, unpacked) 1,330x860x1,250 mm Weight (unpacked) 2,500 kg Installation Rubber mat (anchor bolts required)
