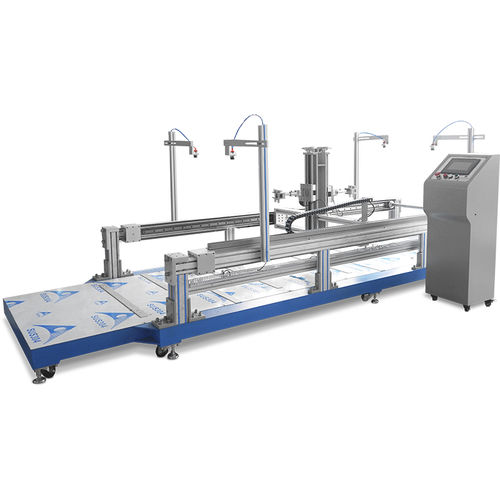

Fatigue testing machine HD-F732

durabilityendurancelifetime cyclical pressure

Chairs Caster Durability Cyclic Testing Equipment Minimum1 SET Delivery15 days after order. ModelHD-F732 CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Specifications 1.Chairs Caster Durability Cyclic Testing Equipment is used to evaluate the quality and wear life of the caster in chair. 2.OEM Bifma × 5.1-2011 Section 17, X5.5 Section 18, X5.9 Section 11 Effective stroke 900 mm Standard loading pad, loading tray * 1, weight: 113kg Test speed: 10 CPM Product description: To evaluate the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth. Seat surface to place the weight (113 kg), the holding fixture driven by motor and timing belt move to and fro, in order to assess the the casters of wear life, stroke rate and the number of times can be set.
