Vibration testing machine HD-F739-FB

life cyclefatigueendurance

Product overview

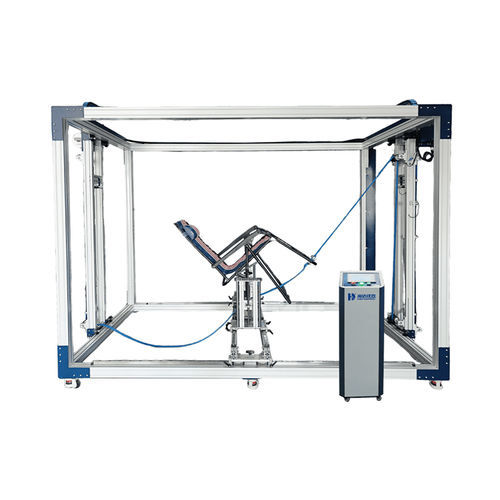

Beach chair cycle fatigue tester HD-F739-FB is designed to evaluate the durability and safety of recliner/open-close mechanisms by simulating repeated opening and closing cycles. It reproduces long-term use scenarios to verify mechanism integrity after tens to hundreds of thousands of cycles.

Product Features
Hardware Features

• Welded frame construction for stability and operator safety
• Exterior finished with baked enamel; structural components in stainless steel and aluminum profiles for corrosion resistance
• Equipped with leveling feet and Fuma casters for mobility, leveling adjustment and vibration absorption

Software Features

• PLC-based controller with touchscreen interface for parameter setting and monitoring
• Automatic stop when preset cycle count is reached and emergency stop protection
• Power-off memory and fault protection for safe, repeatable test runs

Products Advantages

• Experienced supplier with custom testing equipment manufacturing background and consistent delivery performance
• Competitive pricing based on market and manufacturing expertise
• Dedicated QC team performing inspections during production and before shipment following AQL procedures
• Functional, industry-appropriate design that facilitates test setup and observation

Product Specifications (table)

• Model: HD-F739-FB
• Control Method: PLC control
• Display: Touchscreen
• Data Output: USB report output
• Test Speed: 1–10 cycles/min (shorter stroke allows higher speed)
• Max Test Stroke: approx. 1000 mm
• Sample Width Range: 500–1200 mm
• Adjustable Test Cycles: 1–999,999 cycles
• Suitable Sample Tube Dimensions: round/square ≤ 50 mm
• Overall Dimensions (L × W × H): approx. 3000 × 1800 × 2200 mm
• Weight: approx. 350 kg
• Power Supply: Single-phase AC 220V
• Power Rating: approx. 1.6 kW
• Main Test Item: Open-close fatigue testing

Additional Product Details
This machine is intended to test recliner/open-close mechanisms used in sofas, armchairs and similar furniture. Test setups may reference upholstery and frame materials to define clamping and fixture methods. The equipment is suitable for R&D, quality control and pre-series validation to ensure mechanism longevity and safety.
