Durability test machine HD-F769

fatiguefor stentsfor sofa

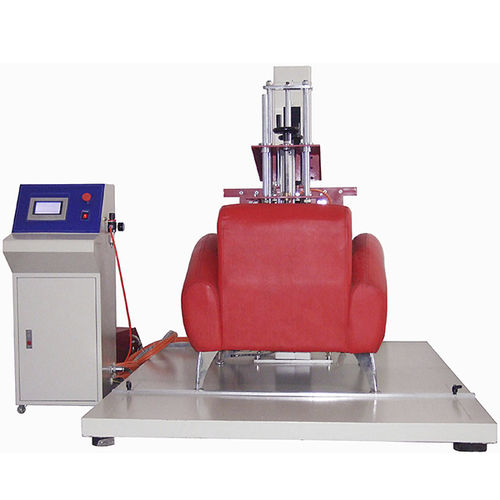

Single-seat sofa Durability Tester Minimum1 SET Delivery15 days after order. ModelHD-F762 CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Introduction : Single-seat sofa Durability Tester Overview : for a sofa seat surface , backrest and armrests for alternating endurance test , each equipped with a pressure force point sensor reads pressure . Single-seat sofa Durability Tester design standards : EN4875 Main function : This test method is to simulate the daily use conditions , the test sofaability to bear the long-term repeatability of the load . Durability test ofthe sofa seat , back and arm , test will shape , mass loading module , to load the form , frequency regulation , respectively , the seat , back andarm suface loading . The seat surface loading capacity is 750 Newton back loading force is400 Newton test cycle : 25000 to 200000 times , in addition to the armrest test can Single power EN4875 Pressure sensor accuracy : 0 . 3% Full range control panel : touch screen programmable controller + color display The maximum size : ( L * W * H ) 1000 x 1000 x 1200mm Total weight : 400kg Power source : 1 , AC220V , 50Hz , compressed air : 7kg/c ㎡
