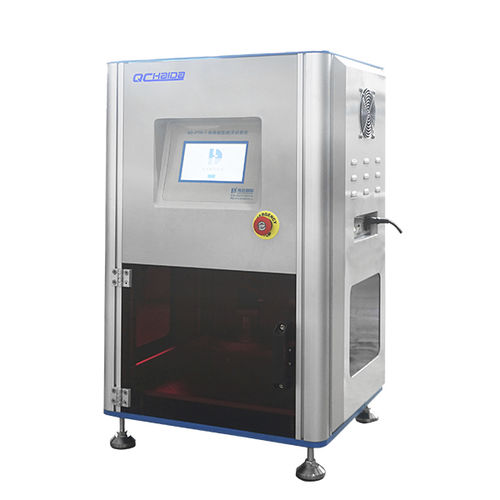

Foam Pounding Dynamic Fatigue Test Machine
Minimum 1 SET
Delivery 15 days after order.
Country China
BrandName HD
Package Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment L/C, D/P, T/T
Price FOB, CIF
The main purpose and function :
Foam Pounding Dynamic Fatigue Test Machine is used to test foam fatigue by repeating indentation of a test piece by an indentor smaller in area than the test piece, the maximum load reached during each cycle being kept within specified limits. The machine can adjust the low platen automatically during testing to provide force compensation.
The English Panel and English operating system
Design Standard :ISO 3385
Standard Features
Max capacity 200kg
Plane plate Holes diameter 6mm, space 20mm
Indentor Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed (70 ± 5) times per minute.(adjustable)
Sample size Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter 6 digits cycle counter for test cycle setting
Display LCD touch screen
Additional function Adjust the test position during testing to compensate the force automatically
Dimension 760×780×1350mm
Power AC220V±10%, 50/60Hz, single phase
