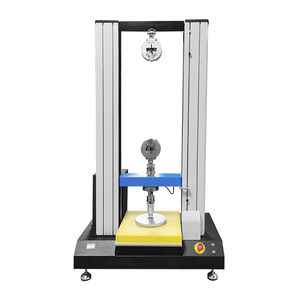

Compression testing machine HD-F750-5

PLC-controlledfor foamelectric

Foam Compression Recover Time Tester GENERL SPECIFICATIONS Packaging Dimensions: (W*D*H) 700*920*1200MM  Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed) Gross Weight: 160kg HS Code: 9024800000 APPLICATIONS&TEST PURPOSE: This machine is used to determine the recovery time of the slow recovery (viscoelastic) foams. DESIGN STANDARD : ASTM D 3574-2008 TEST PROCEDURES: 1.Prepare and condition the test specimen according to the geometries and guidance described in the test standard for IFD testing. 2.Place the specimen onto the perforated base compression platen. Lower the circular top platen onto the top of the specimen to apply a small preload and identify specimen thickness. 3.Indent the specimen to 75% of its original thickness at the speed referenced in the test standard. 4.After a specified dwell time, remove the circular top platen quickly to the specified deflection (close to original height), and record how much time it takes for foam to contact the top platen. STANDARD FEATURES: Control and display - PLC+LCD Sensor - Load cell Capacity - 200KG Unit - N Up plate - Diameter 200mm, bottom fillet R1mm Low plate - 400×400mm, holes diameter 6mm, space 20mm Test Sample Size - 380*380*100mm Test speed - 1000 + 100 mm/min Motor - Servo motor Driver - Electric actuator Power - Single phase, 220V, 50Hz Weight - 160KG
