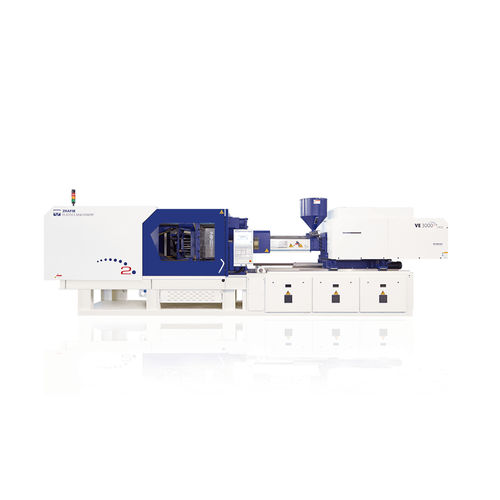

Horizontal injection molding machine Venus

electric

Overview
Fully electric precision injection moulding series (Generation 5) designed for sustainability, high precision and energy savings. The Zhafir Venus Series (Gen 5) delivers increased performance, a reduced footprint and an improved, user-friendly controller.

Key Features

• Fully electric architecture for precise, clean injection moulding
• Generation 5: more powerful CPU, up to 20% faster mold movement, motorized ejection up to 400 mm/s
• Compact footprint: up to 10% (up to 15% on some models) space saving
• New 15" multi-touch Sigmatek controller with intuitive UI
• Symmetrical dual-support nozzle contact for even force distribution and stable platen movement
• Standard intelligent in-house functions and open connectivity for MES and automation

Product Highlights

• Clamping force range: 400 – 13,800 kN
• Injection volume range: 12 – 5,767 cm3
• Mold platen sizes: 440×440 – 2150×2050 mm
• Tiebar distance options: 320×320 – 1550×1450 mm
• Screw diameter options: 16 – 120 mm
• Controller: Sigmatek

Additional Notes

• Generation 5 focuses on reduced footprint and higher machine performance
• Designed for precision moulding with even force distribution and reduced platen tilt
• Prepared for flexible integration into automated production lines and global interfaces

Technical specifications

• Series: Zhafir Venus Series (Generation 5)
• Clamping force: 400 – 13,800 kN
• Injection volume: 12 – 5,767 cm3
• Mold platen size: 440×440 – 2150×2050 mm
• Tiebar distance: 320×320 – 1550×1450 mm
• Screw diameter: 16 – 120 mm
• Controller: Sigmatek, 15" multi-touch
• Ejection speed (motorized): up to 400 mm/s
• Performance improvements: up to 20% faster mold movement; more powerful CPU
• Space-saving design: up to 10% (some models up to 15%)
