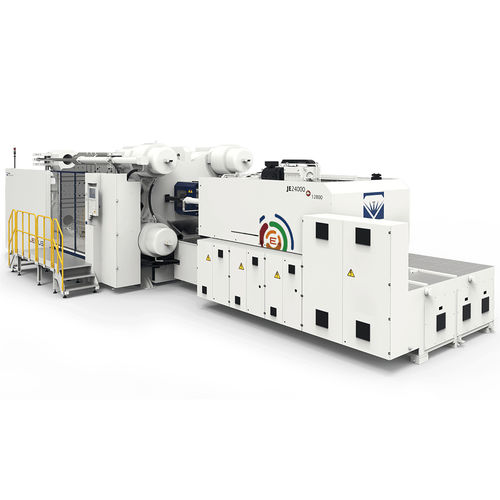

Horizontal injection molding machine Jenius

servo-hydraulicelectrichybrid

Product overview
The Zhafir Jenius Series (JE) is a hybrid two-platen injection moulding machine combining electric injection drive and a servo‑hydraulic clamping system in a modular concept, allowing both fully electric and servo-driven functions to be combined while retaining their benefits. Designed for medium to large moulding applications, JE addresses quality requirements for white goods and automotive components and delivers stable production, improved energy efficiency and favourable return on investment.

Key features

• Hybrid concept with electric injection units 12800, 17800, 22800
• Space‑saving two‑platen clamping unit
• High‑precision, fast electric injection
• Up to 70% energy savings (depending on configuration)
• Low noise operation
• 15‑inch SIGMATEK controller

Technical specifications

• Clamping force: 3,600–33,000 kN
• Injection volume: 617–12,016 cm3
• Max. opening stroke: 1,250–4,200 mm
• Tie‑bar spacing: 730×730–2270×1900 mm
• Screw diameter: 55–150 mm
• Control: SIGMATEK (15‑inch multitouch), dual‑CPU option

Applications and integration
Compact footprint, flexible integration with MES and global interfaces, and standard machine and service functions for process optimisation and reduced operating costs.
