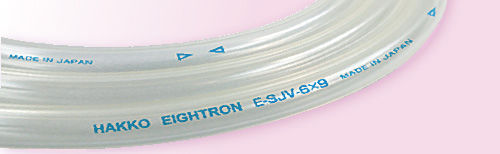

Alcohol hose E-SJV
for oilfor paintfor solvents

alcohol hose
alcohol hose
alcohol hose
Add to favorites
Compare this product

Characteristics

Use
alcohol, for oil, for paint, for solvents
Applications
transport, low-pressure, for chemical applications, transfer, laboratory
Material
PVC, polyurethane, polyamide, fluoropolymer
Other characteristics
chemical-resistant, flexible
Inner diameter

6 mm, 8 mm (0.236 in)

Outer diameter

9 mm, 12 mm (0.354 in)

Pressure

Max.: 3 bar (43.511 psi)

Min.: 0 bar (0 psi)

Temperature

Max.: 70 °C (158 °F)

Min.: 0 °C (32 °F)

Description

For Painting Equipment, Organic Solvents for Printers, and Paints For Transferring Chemicals of Laboratory Equipment For Transferring Chemicals of Semiconductor-Related Equipment, Flat Panel Display (FPD) Manufacturing Devices For Transferring Beverage and Food For Transferring Alcohol, Cosmetics, and Chemicals For Filling Lines of Paints and Adhesives For Filling Lines of Aroma and Additives For Transferring Chemical Wastes Chemical Resistance・・・Since the inner layer is made of ETFE fluorine resin, E-SJV is resistant to most of the chemical substances. Flexibility・・・Due to the multi-layer structure, E-SJV is more flexible than E-SJ, improving work efficiency. Hard to Break・・・Unlike the conventional single-layer fluorine tubing, E-SJV is hard to break. (Even if it breaks, you can restore its shape to some extent.) Non-Adhesiveness・・・Since fluorine resin is superior in water-proof and non-adhesiveness, you can wash out the fluids very easily. Easy to Cut・・・Since we print the cut mark on the tubing every meter, it is easy to cut the length you would like to. Transparency・・・E-SJV enables you to check the fluid very easily. Green Procurement・・・E-SJV is compliant in RoHS 2 regulations. HAKKO Original Fittings・・・By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. Food Sanitation・・・E-SJV conforms to the Food Sanitation Standard No.370 (The Ministry of Health and Welfare for Food Sanitation, No.370, 1959). (Conformity to N-Heptane).
