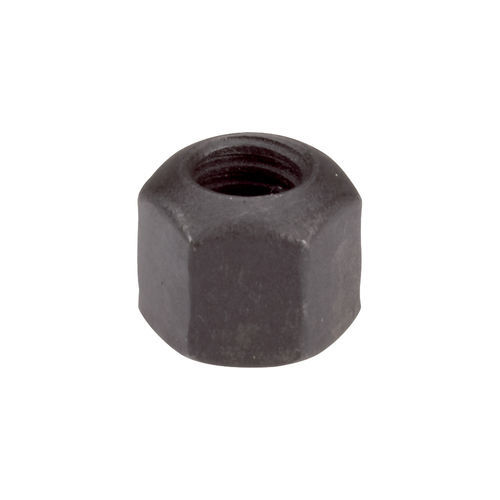

Hexagonal nut EH 23070. series
steelconical

hexagonal nut
hexagonal nut
hexagonal nut
hexagonal nut
hexagonal nut
hexagonal nut
Add to favorites
Compare this product


Characteristics

Types
hexagonal
Material
steel
Other characteristics
conical
Nominal diameter

Max.: 16 mm (0.63 in)

Min.: 8 mm (0.31 in)

Height

Max.: 24 mm (0.945 in)

Min.: 12 mm (0.472 in)

Width

Max.: 24 mm (0.94 in)

Min.: 13 mm (0.51 in)

Description

Fixture nuts according to DIN 6330 have a spherical surface to match conical seats DIN 6319 (EH 23050.). With this combination of fixture nut and conical seat, non-parallel clamping surfaces can be compensated. Material Heat-treated steel, tempered, quality 10, phosphated

Catalogs

No catalogs are available for this product.

See all of HALDER France‘s catalogs
