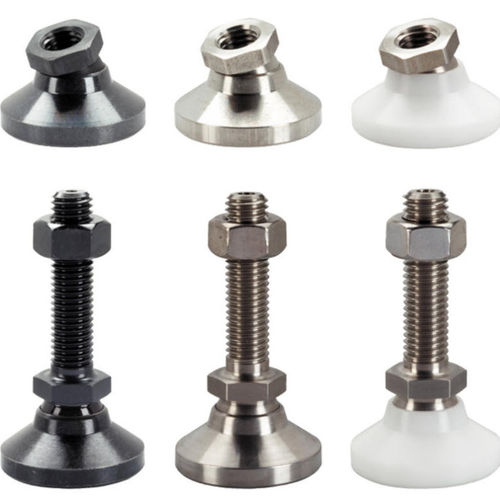

Machine foot EH 22590. seriesplasticstainless steelsteel
Add to favorites
Compare this product
Characteristics
- Applications
- machine
- Material
- plastic, stainless steel, steel
- Type
- swivel
- Other characteristics
- threaded
- Load capacity
Max.: 65 kg
(143.3 lb)Min.: 8 kg
(17.6 lb)- Diameter
Max.: 60 mm
(2 in)Min.: 20 mm
(1 in)
Description
Mounting pads can be used as foot or thrust pad. Not parallel bearing surfaces up to 15° degrees can be compensated.
Material
Ball element
Heat-treated steel, tempered, blackened
Stainless steel 1.4305
Pad
Heat-treated steel, blackened
Stainless steel 1.4305
Thermoplastic POM, white
Ball element with bolt
Heat-treated steel, tempered, blackened
Stainless steel 1.4305
Lock nut
Steel, blackened, ISO 4032
Steel, blackened, DIN 934
Stainless Steel A2, ISO 4032
Stainless Steel A2, DIN 934
