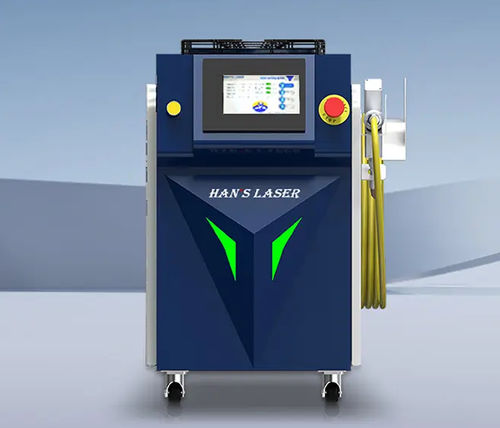

Fiber laser welding machine W series

lasermanualstandalone

Overview
The W Series hand-held laser welding machines produce fine welding seams with minimal post-weld polishing. They combine an integrated control system, laser source, gas control and safety subsystems in a compact, portable unit designed for on-site and workshop welding of metal parts.

Key features

• Fast welding speed: Capable of welding stainless steel, carbon steel, aluminum alloys, copper, galvanized sheets and other metals. Supports stitching, lap and angle joint welding.
• Simple operation: Ergonomic hand-held design and intuitive controls; no advanced welding certification required. Suitable for indoor and outdoor applications and complex sheet-metal and hardware assemblies.
• Laser source: Stable optical-path transmission, intelligent high-frequency swing welding head, telescopic nozzle and adjustable focus for reliable welding of complex, irregular geometries in metal equipment and stainless-steel products.
• Wire feeder: Controlled via machine signal with modes for manual feed, manual retract, auto retract and automatic wire return. Ensures stable feeding and easy adjustment.

Technical Data (for reference only)

• HW1500F-IPG: Laser power 1500 W; Max machine power 5.5 kW; Laser wavelength 1080±5 nm; Fiber length 10 m; Working mode Continuous / Modulation; Swing width 0–5 mm; Swing speed 0–300 Hz; Welding speed 0–50 mm/s; Cooling: water chiller; Welding plate thickness 0.4–4 mm; Power supply AC220V 50/60Hz single-phase; Size 316×641×534 mm; Weight ≈53 kg.
• HW1500F-HL: Laser power 1500 W; Max machine power 6 kW; Laser wavelength 1080±5 nm; Fiber length 10 m; Working mode Continuous / Modulation; Swing width 0–5 mm; Swing speed 0–300 Hz; Welding speed 0–50 mm/s; Cooling: water chiller; Welding plate thickness 0.4–4 mm; Power supply AC220V 50/60Hz single-phase; Size 347.5×720×667 mm; Weight ≈65 kg.
• HW1500: Laser power 1500 W; Max machine power 8.5 kW; Laser wavelength 1080±5 nm; Fiber length 10 m; Working mode Continuous / Modulation; Swing width 0–5 mm; Swing speed 0–300 Hz; Welding speed 0–50 mm/s; Cooling: water chiller; Welding plate thickness 0.4–4 mm; Power supply AC220V 50Hz single-phase; Size 506×958×708 mm; Weight ≈132 kg.
• HW2000: Laser power 2000 W; Max machine power 10.2 kW; Laser wavelength 1080±5 nm; Fiber length 10 m; Working mode Continuous / Modulation; Swing width 0–5 mm; Swing speed 0–300 Hz; Welding speed 0–50 mm/s; Cooling: water chiller; Welding plate thickness 0.4–4 mm; Power supply AC380V 50Hz three-phase; Size 506×958×708 mm; Weight ≈138 kg.

Specifications / Technical specifications

• Series: W Series (hand-held laser welding machine)
• Available laser powers: 1500 W (multiple variants), 2000 W
• Max machine power (by model): 5.5 kW, 6 kW, 8.5 kW, 10.2 kW
• Laser wavelength: 1080±5 nm
• Fiber length: standard 10 m
• Working mode: Continuous / Modulation
• Swing (vibration) width: 0–5 mm; swing speed: 0–300 Hz
• Welding speed: 0–50 mm/s
• Cooling method: water chiller
• Welding plate thickness: 0.4–4 mm
• Power supply: models available for AC220V single-phase and AC380V three-phase (see model details)
• Dimensions and weights: approx. 316×641×534 mm / ~53 kg up to 506×958×708 mm / ~138 kg depending on model
