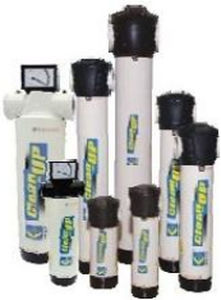

Activated carbon compressed air purifier Class 35

floor-standingfilterdust

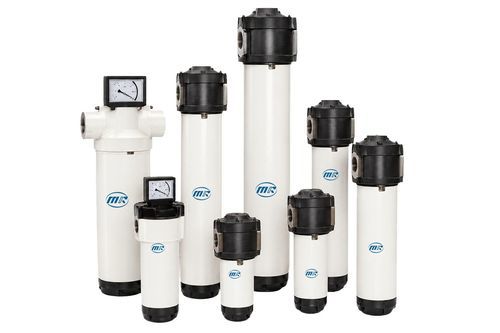

Product Overview
Class 35–800 threaded compressed air filters are intended for main-line and equipment-inlet filtration. A smooth 90° inlet path and conical flow diffuser reduce turbulence and pressure loss while increasing the effective filtration area. The three-section housing enables quick filter-element replacement and straightforward drain maintenance.

Product Specifications

• Working pressure: 0.2–1.6 MPa
• Rated flow range: 1.6–23 m³/min (Class-35 to Class-800)
• Available filtration grades: C / T / A / F / H
• Optional accessories: electronic drain valve, internal drain, automatic drain valve, differential pressure indicator

Mairui C/T/A/F/H Filtration Grades

• C — Main-line oil-water filter; Filtration accuracy: 3 μm; Maximum residual oil: ≤5 ppm
• T — Main-line particulate filter; Filtration accuracy: 1 μm; Maximum residual oil: ≤1 ppm
• A — High-efficiency oil removal; Filtration accuracy: 0.01 μm; Maximum residual oil: ≤0.01 ppm
• F — Ultra-high-efficiency oil removal; Filtration accuracy: 0.01 μm; Maximum residual oil: ≤0.001 ppm
• H — Activated carbon oil-vapor filter; Filtration accuracy: 0.01 μm; Maximum residual oil: ≤0.003 ppm

Models & Specifications

• Class-35 — Rated flow 1.6 m³/min; Working pressure 0.2–1.6 MPa; Connection RC1"; Length 260 mm; Width 107 mm; Filter element: Class-35E-03; Element quantity: 1; Weight: 2.5 kg
• Class-70 — Rated flow 2.6 m³/min; Working pressure 0.2–1.6 MPa; Connection RC1"; Length 305 mm; Width 107 mm; Filter element: Class-70E-03; Element quantity: 1; Weight: 2.8 kg
• Class-100 — Rated flow 3.8 m³/min; Working pressure 0.2–1.6 MPa; Connection RC1"; Length 365 mm; Width 107 mm; Filter element: Class-100E-03; Element quantity: 1; Weight: 3.1 kg
• Class-200 — Rated flow 7 m³/min; Working pressure 0.2–1.6 MPa; Connection RC1-1/2"; Length 555 mm; Width 135 mm; Filter element: Class-200E-03; Element quantity: 1; Weight: 5.1 kg
• Class-300 — Rated flow 8.5 m³/min; Working pressure 0.2–1.6 MPa; Connection RC1-1/2"; Length 635 mm; Width 135 mm; Filter element: Class-300E-03; Element quantity: 1; Weight: 5.8 kg
• Class-350 — Rated flow 11.5 m³/min; Working pressure 0.2–1.6 MPa; Connection RC2"; Length 735 mm; Width 135 mm; Filter element: Class-350E-03; Element quantity: 1; Weight: 6.5 kg
• Class-400 — Rated flow 13.5 m³/min; Working pressure 0.2–1.6 MPa; Connection RC2"; Length 760 mm; Width 170 mm; Filter element: Class-400E-03; Element quantity: 1; Weight: 10 kg
• Class-600 — Rated flow 17 m³/min; Working pressure 0.2–1.6 MPa; Connection RC2-1/2"; Length 820 mm; Width 170 mm; Filter element: Class-600E-03; Element quantity: 1; Weight: 11 kg
• Class-800 — Rated flow 23 m³/min; Working pressure 0.2–1.6 MPa; Connection RC2-1/2"; Length 1060 mm; Width 170 mm; Filter element: Class-800E-03; Element quantity: 1; Weight: 14 kg

Technical features

• Intended use: Main-line and equipment-inlet compressed air filtration
• Housing: three-section design for element replacement and drain access
• Flow features: 90° smooth inlet path and conical flow diffuser to reduce turbulence and pressure loss
• Filtration grades: C (oil-water), T (particulate), A (high-efficiency oil removal), F (ultra-high-efficiency oil removal), H (activated carbon oil-vapor)
• Typical filtration accuracies: 3 μm (C), 1 μm (T), 0.01 μm (A/F/H)
• Maximum residual oil by grade: C ≤5 ppm; T ≤1 ppm; A ≤0.01 ppm; F ≤0.001 ppm; H ≤0.003 ppm
• Accessories: electronic drain valve, internal drain, automatic drain valve, differential pressure indicator
• Filter elements: Series references Class-35E-03 to Class-800E-03; Element quantity: 1 per unit
• Weight examples: 2.5 kg (Class-35) up to 14 kg (Class-800)
