Compressed air filter Class 600

cartridgeindustrialprocess

Product Overview

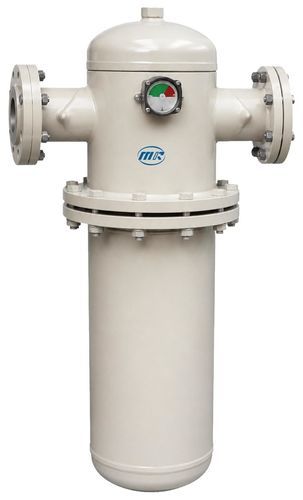

Class 600–17500 flanged compressed air filters are designed for high-flow compressed air systems. One or more filter elements are installed according to the required capacity. C, T, A, F and H filtration grades can be selected to remove particles, liquid water, oil aerosols and oil vapor based on downstream air quality requirements.

Key Product Specifications

• Working Pressure: 0.2–1.0 MPa
• Rated Flow Range: 17–510 m³/min
• Available Filtration Grades: C / T / A / F / H

Mairui C/T/A/F/H Filtration Grades
Grade | Function | Filtration Accuracy | Maximum Residual Oil Content
C | Main-Line Oil-Water Filter | 3 μm | ≤5 ppm
T | Main-Line Particulate Filter | 1 μm | ≤1 ppm
A | High-Efficiency Oil Removal Filter | 0.01 μm | ≤0.01 ppm
F | Ultra-High-Efficiency Oil Removal Filter | 0.01 μm | ≤0.001 ppm
H | Activated Carbon Oil-Vapor Filter | 0.01 μm | ≤0.003 ppm

Models & Specifications
Model | Rated Flow | Working Pressure | Connection | Length (mm) | Width (mm) | Filter Element | Element Quantity | Weight (kg)
Class-600 | 17 m³/min | 0.2–1.0 MPa | DN65FL | 1114 | 320 | Class-600E | 1 | 23
Class-800 | 23 m³/min | 0.2–1.0 MPa | DN65FL | 1266 | 230 | Class-800E | 1 | 28
Class-900 | 27 m³/min | 0.2–1.0 MPa | DN80FL | 1143 | 430 | Class-400E | 2 | 79
Class-1200 | 34 m³/min | 0.2–1.0 MPa | DN80FL | 1143 | 430 | Class-600E | 2 | 85
Class-1600 | 45 m³/min | 0.2–1.0 MPa | DN100FL | 1320 | 430 | Class-800E | 2 | 115
Class-2000 | 55 m³/min | 0.2–1.0 MPa | DN100FL | 1189 | 540 | Class-600E | 3 | 128
Class-2400 | 65 m³/min | 0.2–1.0 MPa | DN125FL | 1438 | 540 | Class-800E | 3 | 135
Class-3000 | 87 m³/min | 0.2–1.0 MPa | DN150FL | 1485 | 600 | Class-800E | 4 | 155
Class-4000 | 110 m³/min | 0.2–1.0 MPa | DN150FL | 1415 | 600 | Class-800E | 5 | 158
Class-4800 | 130 m³/min | 0.2–1.0 MPa | DN150FL | 1445 | 600 | Class-800E | 6 | 170
Class-5600 | 160 m³/min | 0.2–1.0 MPa | DN200FL | 1555 | 740 | Class-800E | 8 | 245
Class-7000 | 210 m³/min | 0.2–1.0 MPa | DN200FL | 1630 | 750 | Class-800E | 10 | 270
Class-8000 | 260 m³/min | 0.2–1.0 MPa | DN250FL | 1610 | 900 | Class-800E | 12 | 320
Class-10500 | 320 m³/min | 0.2–1.0 MPa | DN250FL | 1830 | 930 | Class-800E | 14 | 450
Class-12500 | 360 m³/min | 0.2–1.0 MPa | DN300FL | 1750 | 960 | Class-800E | 16 | 420
Class-14000 | 410 m³/min | 0.2–1.0 MPa | DN300FL | 1670 | 985 | Class-800E | 19 | 435
Class-17500 | 510 m³/min | 0.2–1.0 MPa | DN350FL | 1991 | 1140 | Class-800E | 24 | 500

Caractéristiques / spécifications techniques

• Working Pressure: 0.2–1.0 MPa
• Rated Flow Range: 17–510 m³/min (models Class-600 through Class-17500)
• Available Filtration Grades: C, T, A, F, H (functions range from main-line oil-water separation to activated carbon oil-vapor removal)
• Filtration accuracies: down to 0.01 μm for high-efficiency oil removal; particle filtration at 1–3 μm for main-line filters
• Maximum residual oil content by grade: C ≤5 ppm; T ≤1 ppm; A ≤0.01 ppm; F ≤0.001 ppm; H ≤0.003 ppm
• Connection types shown in models: DN65FL, DN80FL, DN100FL, DN125FL, DN150FL, DN200FL, DN250FL, DN300FL, DN350FL
• Filter element types associated with models (e.g., Class-600E, Class-800E, Class-400E)
