Gas filter KPF series

for airmembranesterilization

Product Overview
KPF sterile air and gas filters employ pleated, reinforced polyvinylidene fluoride (PVDF) microporous membrane elements for precision filtration of compressed air, process gases and compatible liquids. Elements are hydrophobic, offer broad chemical compatibility and withstand repeated steam-sterilization cycles.

Typical Applications

• Pharmaceutical processing
• Biotechnology
• Brewing
• Sterile tank venting
• High-temperature liquid filtration
• Solvent filtration

Models & Specifications (table)

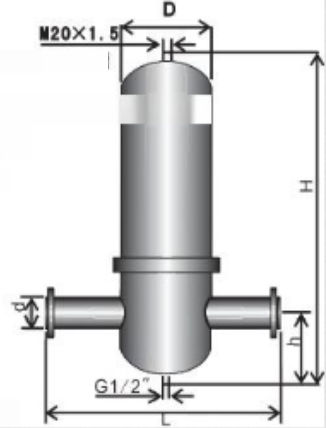

Model | Rated Flow | Connection | Length (mm) | Height (mm) | Diameter (mm) | Lower Height (mm) | Element Specification / Quantity
KPF-05 | 0.5 m³/min | DN25 PN1.0 | 234 | 434 | 114 | 96 | 5" / 1
KPF-2 | 2 m³/min | DN25 PN1.0 | 234 | 549 | 114 | 96 | 10" / 1
KPF-4 | 4 m³/min | DN25 PN1.0 | 234 | 800 | 114 | 96 | 20" / 1
KPF-5 | 5 m³/min | DN50 PN1.0 | 324 | 789 | 184 | 300 | 10" / 3
KPF-10 | 10 m³/min | DN65 PN1.0 | 324 | 1046 | 184 | 300 | 20" / 3
KPF-15 | 15 m³/min | DN80 PN1.0 | 415 | 1178 | 235 | 380 | 20" / 5
KPF-20 | 20 m³/min | DN100 PN1.0 | 415 | 1196 | 235 | 385 | 20" / 5
KPF-30 | 30 m³/min | DN100 PN1.0 | 475 | 1251 | 275 | 426 | 20" / 7
KPF-40 | 40 m³/min | DN125 PN1.0 | 505 | 1284 | 305 | 438 | 20" / 9
KPF-60 | 60 m³/min | DN125 PN1.0 | 555 | 1303 | 355 | 438 | 20" / 12
KPF-80 | 80 m³/min | DN150 PN1.0 | 606 | 1346 | 406 | 450 | 20" / 15
KPF-100 | 100 m³/min | DN150 PN1.0 | 656 | 1375 | 456 | 450 | 20" / 19
KPF-120 | 120 m³/min | DN200 PN1.0 | 706 | 1501 | 506 | 505 | 20" / 25
KPF-150 | 150 m³/min | DN200 PN1.0 | 756 | 1514 | 556 | 505 | 20" / 30

Related Accessories (selection)
KLS-F Series Steam Filters: models KLS-F-035, KLS-F-080, KLS-F-1 (used for steam-sterilization service compatible with KPF models).

Characteristics / Technical specifications

• Reference Flow Range: 0.5–150 m³/min
• Filtration Accuracy: 0.01 μm
• Filtration Efficiency: 99.9999%
• 10-Inch Element Throughput: ≥5 Nm³/min (0.1 MPa / ΔP 0.01 MPa)
• Steam Sterilization: 125 ± 2°C; 30 min/cycle; max. 160 cycles
• Maximum Positive Differential Pressure: 0.2 MPa
• Initial Pressure Drop: 0.005 MPa
• Element Lengths: 125 mm (5"), 250 mm (10"), 500 mm (20")
• Element Diameter: 70 mm
• Filtration Area: 0.32 m² (5"), 0.65 m² (10"), 1.3 m² (20")
• Filter Medium: PVDF membrane
• Support and End Caps: Heat-resistant polypropylene
• Center Support: Stainless-steel mesh cylinder
• Seal: Fluoroelastomer or silicone rubber (Ø57 mm)
