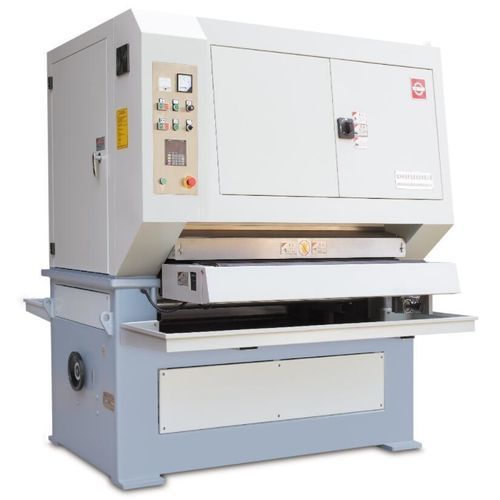

Belt sander SG1030-WJS

stationaryelectricfor steel

Product overview
SG1030-WJS is a wet wide-belt grinding and brushing machine designed for sheet metal and material processing. It is especially suited to heat‑sensitive and cold‑state materials such as aluminium‑magnesium alloys, zirconium, titanium and thin stainless steels. The system integrates a precision coolant circulation and filtration arrangement to minimize thermal deformation and deliver consistent, clear brushed finishes. Wet processing extends abrasive belt life compared with dry methods.

Functions
SG1030-WJS is built for wide-belt wet processing and is intended for high‑volume, high‑efficiency surface grinding and brushing operations, ensuring stable processing quality and reduced workpiece heat distortion.

Features

• Wet processing for superior surface finishing.
• Fixed opening design for through‑feed, high‑throughput batch processing.
• 祥生 patented external four‑column synchronous lifting worktable system.
• 祥生 patented wide‑belt trajectory control system.
• Stainless‑steel coolant filtration system to maintain coolant cleanliness and circulation accuracy.
• Conveyor belt made of oil‑ and acid/alkali‑resistant rubber for demanding environments.
• Core high‑speed rotating parts use imported bearings to improve reliability and service life.

Suitable materials

• Stainless steel
• Aluminium, aluminium‑magnesium alloys
• Copper
• Rubber
• Zirconium, titanium and other thin plate materials

Optional configurations

• Multiple belt or polishing wheel stations for ultra‑fine surface finishes.
• Magnetic conveyor bed for small flat parts handling.
• Available sanding widths: 350 mm, 630 mm, 1030 mm, 1300 mm, 1600 mm.
• Multi‑machine lines for integrated precision grinding and polishing production.

Consumables

• Ring‑type abrasive belts in various grits
• Barrel‑shaped non‑woven polishing wheels

Characteristics / Technical specifications

• Model: SG1030-WJS
• Processing width: 1000 mm
• Recommended processing thickness: 0.8–70 mm
• Feed speed: 2–9 m/min
• Total machine weight: 1.5 t
• Optional sanding widths: 350 mm, 630 mm, 1030 mm, 1300 mm, 1600 mm
