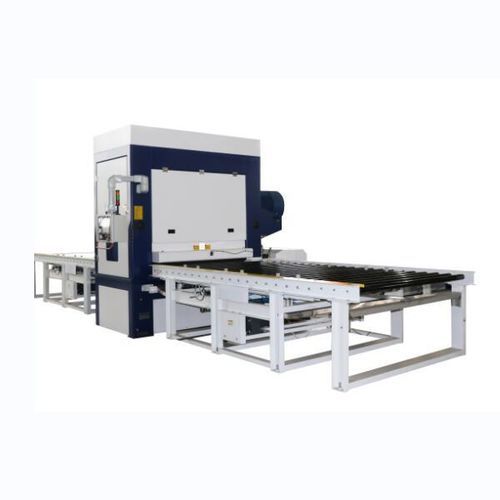

Wide-belt sander SG1300-WJS

stationaryelectricfor steel

Product description
祥生 SG1300-WJS wet wide-belt grinding equipment is designed for surface treatment of stainless steels and rare metals. The heavy-duty wet processing main unit, combined with front and rear powered roller stands and a precision grinding-fluid filtration and recirculation system, forms an efficient processing cell. The complete unit is PLC-controlled; after loading, the machine performs automatic reciprocating abrasive processing. It is suitable for heavy stock removal on hot-rolled plates as well as precision thickness control and polishing on cold-rolled sheets, and is particularly suited to titanium, stainless steel and molybdenum alloy surface grinding and polishing.

Equipment features:

• Wet grinding minimizes thermal deformation of the workpiece and produces refined final surfaces.
• Heavy-duty rubber-wrapped drive and feed rollers ensure strong and smooth conveying.
• Special hardened support (Billy) roller under the contact roller enables processing of thin sheets down to 0.5 mm.
• 祥生 patented abrasive head precision lift system driven by Mitsubishi servo motor, positioning accuracy to 0.01 mm.
• Precision multi-stage grinding-fluid filtration and recirculation system.
• Auxiliary device for convenient abrasive belt change.
• Rapid removal system for grinding residues inside the sanding area.
• Programmable Mitsubishi control panel with large touchscreen for convenient monitoring and setting of grinding parameters.
• Fixed working height allows multiple grinding units to be linked inline to ensure consistent multi-grit surface processing across batches.

Specifications
Processing width: 1280 mm
Recommended material thickness: 0.5–70 mm
Feed speed: 2–14 m/min
Belt size: 1300 x 2620 mm
Machine dimensions: 2050 x 2000 x 2500 mm
Weight: 10000 kg

Features / Technical specifications:

• Model: SG1300-WJS
• Processing width: 1280 mm
• Recommended material thickness: 0.5–70 mm
• Feed speed: 2–14 m/min
• Belt size: 1300 x 2620 mm
• Machine dimensions: 2050 x 2000 x 2500 mm
• Weight: 10000 kg
